Accelerometer
Showing 1–24 of 37 results
-
-
Sensors
ADXL345 Tripple Axis Accelerometer Board
- Supply Voltage: 3.3 V/ 5V.
- Interface Type: I²C, SPI.
- Sensing Range: ±2g, ±4g, ±8g, ±16g.
- Sensitivity:
- X: 28.6 LSB/g.
- Y: 31.2 LSB/g.
- Z: 34.5 LSB/g.
- Ultra Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V.
- Free-Fall Detection.
- Tap/Double Tap Detection.
SKU: n/a -
-
Sensors

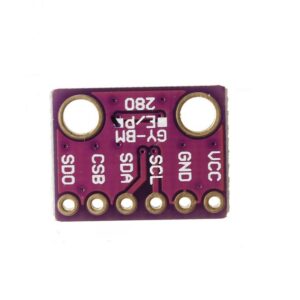

BMP280 Barometric Pressure and Altitude Sensor I2C/SPI Module
- Operating Voltage: 1.71V to 3.6V – would typically be operated from 3.3V.
- Operating Temperature: -40 to +85 deg. Celsius (full accuracy between 0 and +65 deg. C).
- Peak current: 1.12mA.
- Operating Pressure: 300 hPa to 1100 hPa.
- Accuracy between 700 to 900hPa and 25 to 40 deg. C: ±0.12hPa and ±1.0m.
SKU: n/a -
Sensors

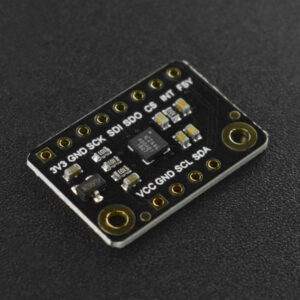

DFRobot Fermion: ICG 20660L Accel+Gyro 6-Axis IMU Module (Breakout)
- Operating Voltage: 3.3V
- Current Consumption: 140uA (sleep mode)/ 520uA (Accelerometer mode only)/ 4.27mA (Gyro mode only)/ 4.9mA (accelerometer and gyro mode)
- Initial Sensitivity: accelerometer ±1%; gyro ±1%
- Non-linear Sensitivity: accelerometer ±0.5%, gyro ±0.1%
- Interface: I2C/SPI（7MHz）
- Selectable Scale: ±2g/±4g/±8g/±16g
- Gyroscope Range: ±125/±250/±500dps
SKU: n/a -
-
-
-
-
-
Sensors
HW-290/GY-87 10DOF MPU6050+HMC5883L+BMP180 3-axis Gyro + 3-axis Acceleration + 3-axis Magnetic Field + Air Pressure Sensor
-11%
SensorsHW-290/GY-87 10DOF MPU6050+HMC5883L+BMP180 3-axis Gyro + 3-axis Acceleration + 3-axis Magnetic Field + Air Pressure Sensor
- 3-axis Gyro+Acceleration+Magnetic Fiel
- Air Pressure Module
- Power supply: 3-5V
- Build in ultra low noise linear LDO voltage regulator
- Built-in onboard filters, which reduce noise from motor and other high current electronics
- You can easily select two I2C address for MPU6050 by soldered jumper
SKU: n/a -
