Load / Pressure / Force / Flex Sensor

1. A silicone-gel covered pressure sensing gauge with a pre-calibrated and compensated 24 bit ADC
2. Measure absolute pressure 0 to 25 PSI
3. The port is made of stainless steel and is 3.7mm long and 2.5mm diameter
4. 3.3V power regulation and level shifting
5. Weight: 2g

1. Working voltage: 3.2~3.4V
2. Working current: ＜45mA
3. Measurement range: -500~+500Pa
4. Accuracy: ±3% Readings

1. Conductivity range: 100 µS/cm to 200 mS/cm
2. Cell constant4): typical 0.86 cm-1
3. Nominal resistance: 1000 Ω at 0 °C
4. Measurement frequency range: 100 Hz to 10 kHz

The A101 is our smallest sensor can measure up to 10 lbs. The dynamic range of this mini force sensor can be modified by changing the drive voltage and adjusting the resistance of the feedback resistor

Applications:

1. Testing and Measurement Equipment
2. Embedded Electronics
3. OEM Development Kit
4. Consumer Electronics
5. Multimeter

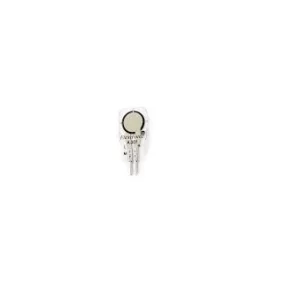

1. Thickness:0.203 mm
2. Length:25.4 mm
3. Standard Force: 111 N
4. Width :14 mm
5. Sensing Area diameter:9.53 mm

1. Sensor Thickness:0.203 mm
2. Shape: Ring
3. Connector:3-pin Male Square Pin
4. Substrate: Polyester

1. Sensor Length:91.2 mm
2. Sensor Width:11.6 mm
3. Sensor Thickness:0.203 mm
4. Shape:Strip
5. Substrate: Polyester

1. Model: HX710B
2. Data Output Rate:10 SPS / 80SPS
3. Max. Operating Current (mA):1.5
4. IC Package:16 Pin SOP

1. Output Sensitivity: 1.0 ± 0.1 mV / V.
2. Two selectable differential input channels.
3. On-chip active low noise PGA with the selectable gain of 32, 64 and 128.
4. On-chip oscillator requiring no external component with optional external crystal.
5. On-chip power-on-reset.
6. Measurement Resolution: 24 bit.

1. Analog Sensor Output
2. Compatible With Grove Ecosystem
3. High Durability
4. Reliable Mechanical Structure

1. Supply Voltage:1.95V to 3.6V
2. Digital Interface Supply Voltage:1.6V to 3.6V
3. Pressure range:0,05~0.11 MPa
4. Weight:2 gm
