Shield for Arduino
Showing 1–24 of 35 results
-
Development Boards
10A Motor Driver Shield – MD10
- Bi-directional control of 1 brushed DC motor.
- Support motor voltage ranges from 7V to 25V, .
- Maximum current up to 10A continuous and 15A peak (10 seconds).
- Solid state components provide faster response time and eliminate the wear and tear of a mechanical relay.
- Fully NMOS H-Bridge for better efficiency and no heat sink is required.
- Speed control PWM frequency up to 10KHz.
- Selectable digital pins for PWM and DIR.
SKU: n/a -
-
Development Boards
ADK USB Host Shield compatible with Arduino
- Works with standard (dual 5/3.3V) and 3.3V-only (for example, Pro Arduino) boards.
- Complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)
- Supports HID devices, such as keyboards, mice, joysticks, etc.
- Compatible with Mass storage devices, such as USB sticks, memory card readers, external hard drives (FAT32 Type File System – Mega Arduino only).
SKU: n/a -
-
Development Boards
Colorduino LED RGB Dot Matrix Driver Board with 5mm 8*8 RGB LED for Arduino
- 8bits colors support with 6bits correction for each color in every dots
- Hardware 16MHz PWM support
- 24 constant current channels of 100mA each
- Current Consumption(Except LED matrix): 20mA typical (40mA maximum)
- Drive current(Every channel): 500mA
- Drive current(Every dot) : 58mA
SKU: n/a -
-
Development Boards
Cytron 2Amp Motor Driver Shield
-
Logic control, 5V from Arduino main board
-
Polarity protection for External motor power input
-
2 fast test buttons for each motor channel
-
Motor Driven Voltage：6.5 to 12VDC(VIN Power Supply), 5.0 to 26VDC (External Power Source)
-
Up to 2A current each channel
-
Pin 4, 5,6,7 are used to drive two DC motor
-
Support PWM speed control
-
Support advance speed control
SKU: n/a -
-
Development Boards
Cytron Arduino PS2 Shield
- 5V powered low current consumption.
- Simple to use UART protocol
- Vibrator motor on PS2 is controllable.
- Wired and Wireless PS2 controller is supported.
- PS2 Controller will automatically operate in analog mode.
- A status LED
- Jumper selector to select different UART Baud Rate (9600, 57600, 115200).
- Jumper selectors to select different digital pin as UART TX and RX pin.
SKU: n/a -
Development Boards
Cytron ESP8266 WiFi Shield V2.0 W/ Micro SD Card Slot For Arduino Uno
- Basically, Rev2.0 utilize WROOM-02 instead of ESP8266-12 as the WiFi module.
- Separate 3.3V voltage regulator for ESP8266-12 WROOM-02 module, 500mA max output.
- Each and every board is preassembled and tested before it is being shipped out to you.
- 802.11 b/g/n.
- Support Wi-Fi Direct (P2P), soft-AP.
- Integrated TCP/IP protocol stack.
SKU: n/a -
Development Boards
Cytron XBee Shield
-
Mounts directly onto your Arduino
-
DIN and DOUT pins of XBee can be connected to either the USB’s UART pins or another digital pin on the Arduino (D0, D1, D2, D3, D8, D9, D10, D11)
-
3.3V power regulation and proper level shifting on-board communication between 5V and 3.3V
-
Extra 0.1″ spaced prototyping holes
-
Reset button brought out to shield
-
Power, DIN, DOUT, RSSI, and DIO5 indicator LEDs
SKU: n/a -
-
Development Boards
Data Logger module Logging Shield data Recorder Shield
- SD card interface works with FAT16 or FAT32 formatted cards. 3.3v level shifter circuitry prevents damage to your SD card.
- Real-time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery backup lasts for years.
- Included libraries and example code for both SD and RTC mean you can get going quickly Prototyping area for soldering connectors, circuitry or sensors.
- The onboard 3.3v regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of power to run.
- A dedicated and well-designed data logging shield for Arduino.
SKU: n/a -
-
Development Boards

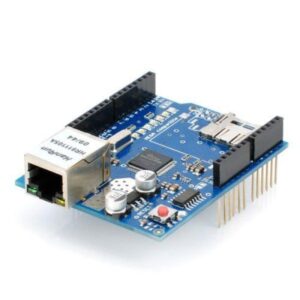

Ethernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot for Arduino
-15%
Development BoardsEthernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot for Arduino
- Based on the W5100Based on the Wiznet W5100 allows an Arduino board to connect to the internet.
- Stackable Design, can directly be supported by for Arduino official Ethernet Library.
- Supports up to four simultaneous socket connections
- Can be used to store files for serving over the network.
- Can be accessed using the Mini SD TF library.
- IEEE802.3af compliant
- Low output ripple and noise (100mVpp)
- Overload and short-circuit protection
SKU: n/a -
-
Development Boards
MINI USB Host Shield 2.0 ADK
- Only supports 3.3V / 8M / 328 Promini and 3.3V FTDI.
- Mini USB host allows (Pro mini version only) to achieve USB HOST function, also USB HUB function.
- Provided compiled APK installation package and ADK source files compatible with hardware Mega 1280.
- Support For Google Android ADK function
- Support For Android phone type
SKU: n/a -
-
-
Development Boards
Proto Screw Shield 1.0 For Arduino Uno
- Arduino terminal to provide the IO, port connection.
- 3.81 posts quality, reliable, convenient, durable.
- Combined with the Proto Shield, the middle can be used as a prototype expansion board.
- Double-sided PCB Prototyping extended area vias connecting the front sides can be welded components.
- The middle section can be placed small bread plate, convenient test extend
SKU: n/a -
Development Boards
Prototype Shield V3.0 For Arduino Mega with breadboard
- The shield can support being fully assembled with Arduino MEGA
- Support soldering components directly on this shield
- Support sticking the mini breadboards on this shield
- Reset button up top
- Mainboard aureate quadrate
- With SOP28 SMT components encapsulation
SKU: n/a
