- Diameter: 12 mm
- No. of pins: 2
- Type of mounting: PCB Through Hole
- Maximum Operating Temperature: +70ËšC (Approx.)
- Dark resistance: 1-20MΩ
- Spectral peak: 560nm
- Maximum voltage: 250 VDC
- Maximum wattage: 200 mW
- Light resistance (10 Lux): 10-20 KΩ
- Dark resistance: 2 MΩ
- Resistance illumination: 3
- Response time: 20ms (Rise), 30ms (Down)
-14%
LDR

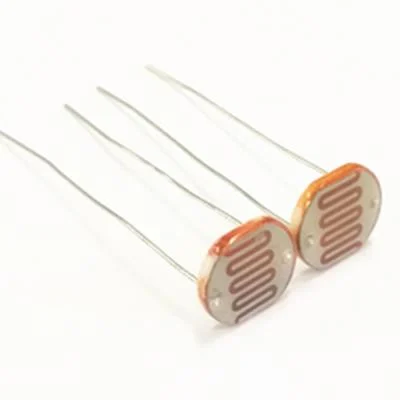

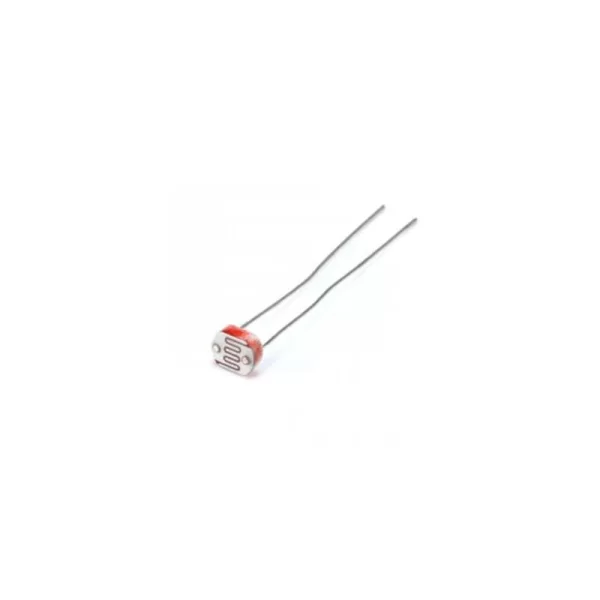

12mm GL12528 Light Sensitive Photoresistor LDR (2Pcs)
- Diameter: 12 mm
- No. of pins: 2
- Type of mounting: PCB Through Hole
- Maximum Operating Temperature: +70ËšC (Approx.)
- Dark resistance: 1-20MΩ
- Spectral peak: 560nm
- Maximum voltage: 250 VDC
- Maximum wattage: 200 mW
- Light resistance (10 Lux): 10-20 KΩ
- Dark resistance: 2 MΩ
- Resistance illumination: 3
- Response time: 20ms (Rise), 30ms (Down)
₹64.00 ₹74.00
