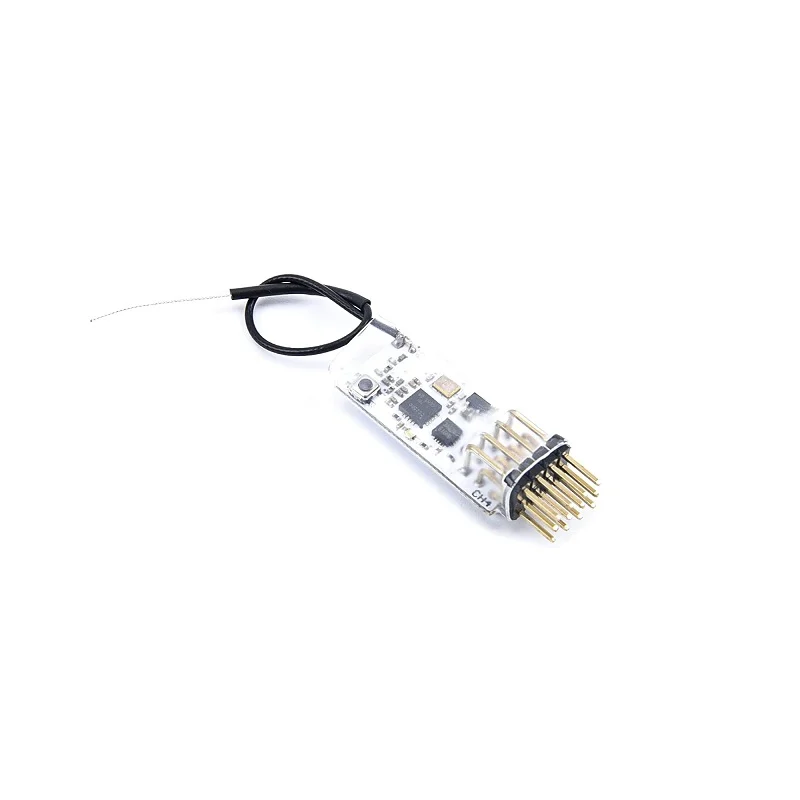

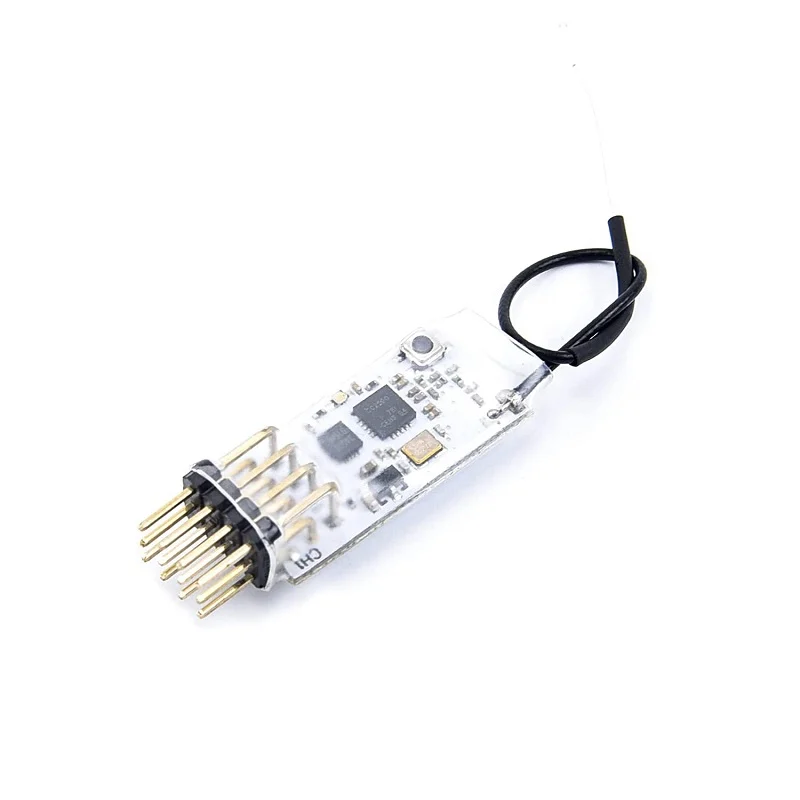

2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output


  1. Channel: 4CH
  2. Weight: 2.2g
  3. Resolution: 1024
  4. PWM Output: Yes
  5. Operating Voltage: 3.5-10V
  6. Current: 50MA
  7. Antenna Length: 100mm
  8. Control Range: >500M+
  9. Compatibility: Compatible with Frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT

863.00 1,019.00

Compare

2.4G 4CH RC Receiver Compatible with D8 D16 With PWM Output for T16 X9D Transmitter


Specifications:

  1. Working frequency: 2400Mhz-2483. 5Mhz
  2. Working mode: Frequency-Hopping Spread Spectrum
  3. Working voltage: 4.0V-15V
  4. Working current: <25mA (+8.0V)
  5. Output channel: 4CH PWM
  6. Size: 27.7 x 12.7  x  10mm

How To Bind:

  1. Power the receiver, the led flashes slowly, press the bind button for about 1 second, the led will flashes quickly which indicates the receiver is in binding mode
  2. Power on the remote control
    • Futaba double-leaf remote control (board control) choose S-FHSS system, (gun control) choose S-FHSS  or S-FHSS NORM system
    • Frsky remote control select D8/D16 system, set to enter bind mode
    • Jumper remote control select Frsky/FrskyX system, set to enter bind mode
  3.  Receiver status
    1. Futaba double-leaf mode: The indicator light changes from flashing quickly to steady light, and the code is successfully matched
    2. Frsky /jumper mode: The indicator light changes from fast flashing to slow flashing, the remote control exits Bind mode, the indicator light is always on, and the code matching is successful.

Signal output:

CH1-AIL (Aileron) CH2-ELE (Elevation) CH3-THR (Throttle) CH4-RUD (Direction)


Package Includes :

1 x 2.4G 4CH RC Receiver Compatible with D8 D16 With PWM Output for T16 X9D Transmitter
