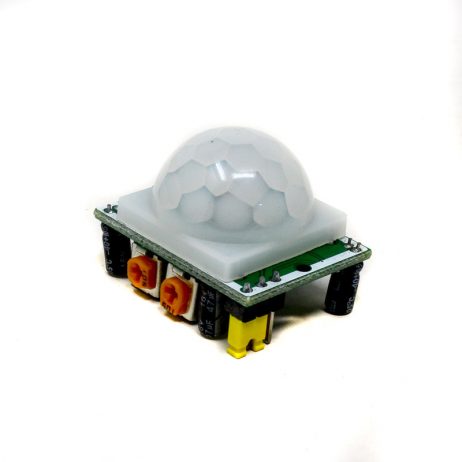

- Wide Working Voltage Range: DC 4.5V- 20V
- Current Drain:Â <60uA
- Detection Angle: <140°
- Detection Distance: 3 to 7m (can be adjusted)
- Blockade time: 2.5s (Default)
-  Work temperature: -20-+80°C
- Jumper for trigger.
-18%
Based on 0 reviews
Be the first to review “HC-SR501 PIR with Jumper at back for trigger”
