- Motor Type – Outrunner
- KV Rating – 125 KV
- Maximum Thrust – 14 KG
- Stator Poles / Magnet Poles – 36 / 42
- No load current – 3.2A
- Motor Efficiency – 90.99%
- Weight (Including Cable) – 509 grams
- Voltage Range – 48 V (12S LIPO – 4.2V/ pc)
- Peak Current (30 Sec) – 90 A
- Peak Power (30 Sec) – 3996 W
- Motor Dimensions – Ø90mm x 33.25mm
- Cable length – 100 mm
- Shaft Diameter (Internal) – Ø6mm
- Magnet Temperature Rating – 150 ℃
- Cable Type / Length – 14AWG / 100mm
- Copper wire Temperature Rating – 150 ℃
- Winding material – 100% Copper
- IP Rating – IP34
- Maximum Operating Temperature – 60 ℃
- Recommended Propeller – 30*95 (Folding)
Drone Kit, Drone Motor

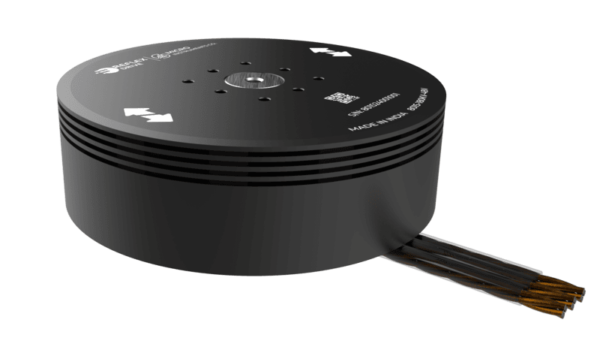

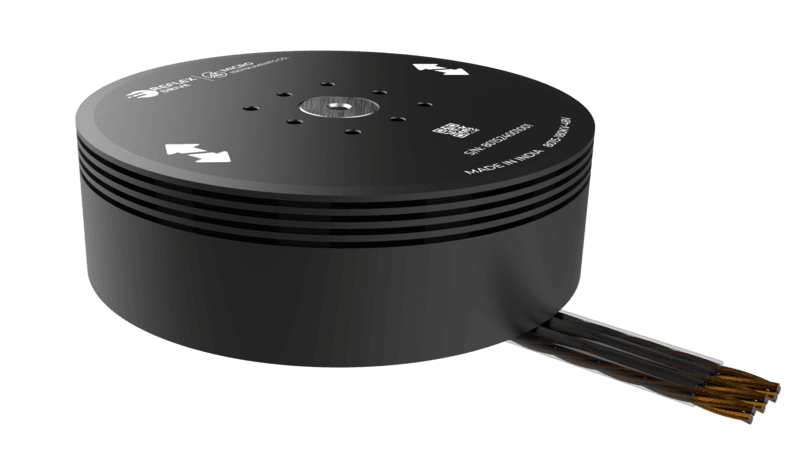

Made In India RD MI X8 8015 UAV BLDC Motor 12S 125KV
Specification:
- Motor Type – Outrunner
- KV Rating – 125 KV
- Maximum Thrust – 14 KG
- Stator Poles / Magnet Poles – 36 / 42
- No load current – 3.2A
- Motor Efficiency – 90.99%
- Weight (Including Cable) – 509 grams
- Voltage Range – 48 V (12S LIPO – 4.2V/ pc)
- Peak Current (30 Sec) – 90 A
- Peak Power (30 Sec) – 3996 W
- Motor Dimensions – Ø90mm x 33.25mm
- Cable length – 100 mm
- Shaft Diameter (Internal) – Ø6mm
- Magnet Temperature Rating – 150 ℃
- Cable Type / Length – 14AWG / 100mm
- Copper wire Temperature Rating – 150 ℃
- Winding material – 100% Copper
- IP Rating – IP34
- Maximum Operating Temperature – 60 ℃
- Recommended Propeller – 30*95 (Folding)
₹14,099.00 ₹15,000.00
Specification:
Reviews
There are no reviews yet
