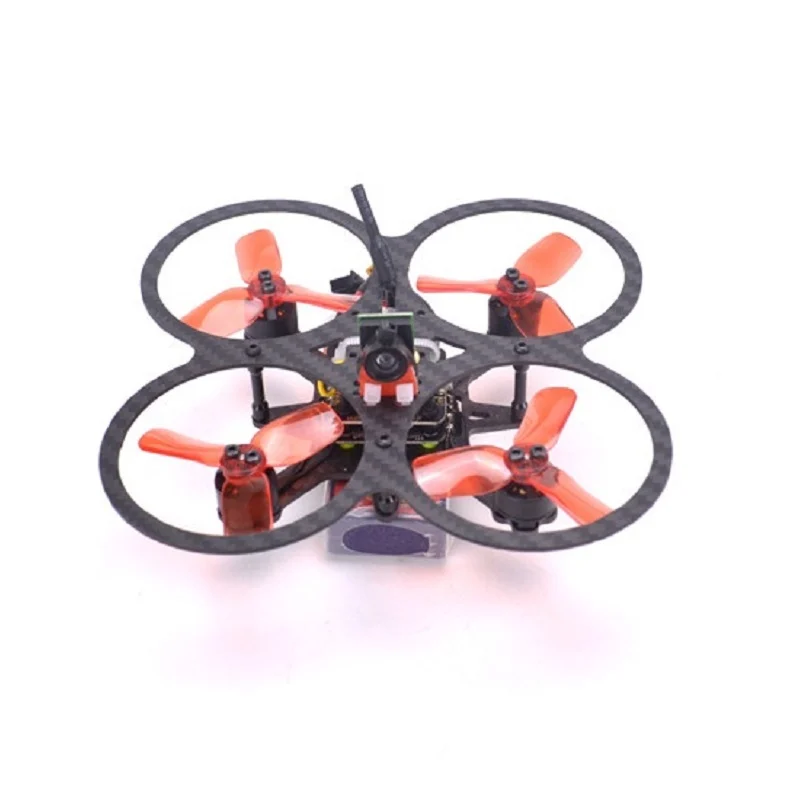

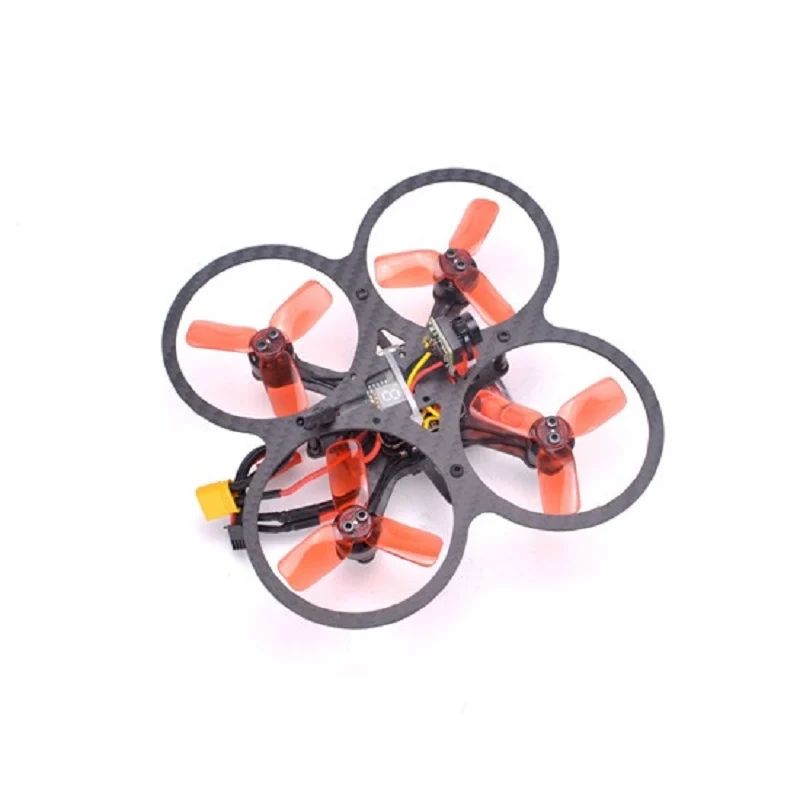

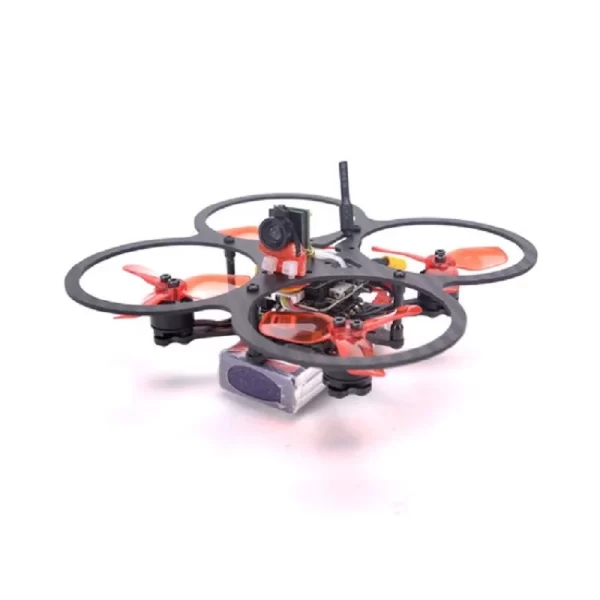

Mini MD90 90mm Racing Drone with Mini Flytower F3


Available on backorder

  1. Pack contains quality products
  2. All products are tested and ready to perform
  3. All essential equipment required to build a Racing Drone is included in this advanced combo pack.

39,999.00 45,000.00

Available on backorder


This Mini MD90 90mm Racing Drone with Mini Flytower F3, Drone Power Combo Set is the best low price drone motors and accessories combo set available in the market.

If you are about to have a great flying drone or quadcopter designed all by you. OKAY GREAT, But having a limited budget ??

Then here is the best deal for you!!!!

It is a pack of Mini F3 or F4 flytower Flight controllers with a 5.8G 25mW Transmitter, 600TVL 170 degree color video mini camera with mic audio, 1104 7500kv motor, and MD90 Frame Kit with 2030 red propeller.

Note: This product doesn’t come with a transmitter and receiver you have to purchase it separately.


  1. 600TVL 170 degrees color video mini camera with mic audio
  2. 48 wireless channels transmitter
  3. 7500KV Brushless Motor
  4. Micro size and lightweight
  5. Easy installation for racing drone



  1. Support video format: PAL
  2. Output Impedance: 50 Ohm
  3. Output signal strength: 13±1dbmdBm
  4. Output Power: 25mW
  5. Wireless Channel: 48CH
  6. Operating voltage: 5v
  7. Current: 100mA
  8. Frequency : 5 BAND 48CH 5645 ~ 5945 MHz

600TVL Camera:

  1. Horizontal Resolution : 600TVL
  2. Minimum illumination: 0LUX(LED ON)
  3. S/N ratio ≥48dB
  4. Gama:0.45
  5. Frame speed: 50f/s(PAL)
  6. White balance: Auto
  7. Audio out: Monophonic
  8. Video out: 1.2Vp-p 75Ω CVBS
  9. Image color: Color
  10. TV format: PAL
  11. Lens: 1.8mm Wide view angle 170 Degree
  12. IR Distance:1-3 Meters
  13. Working temperature: -10~+50Degree C
  14. Input power : 5V(Module)/DC9-12V(With step-down AV cable)
  15. Power consumption :120mA

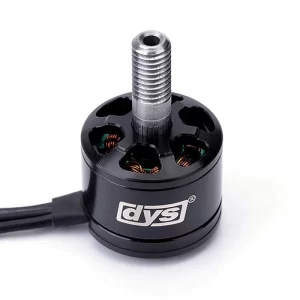

Mini 1104 7500KV Brushless Motor:

  1. KV: 7500KV
  2. Motor size: diameter 14*12.5
  3. Stator Diameter: 14mm
  4. Stator Length: 12.5mm
  5. Shaft Diameter: 1.5mm
  6. Motor Dimensions(Dia*Len): diameter 14*12.5mm
  7. No.of Cells(Lipo): 2-3S
  8. Max Continuous Current(A): 3.5A
  9. Max Continuous Power(W): 38.9W

MD90 frame:

  1. Wheel Base: 90mm
  2. Weight: about 19g
  3. Upper Board Thickness: 1.5 mm
  4. Bottom board Thickness: 2mm

Package Includes:

1 x MD90 Frame Kit
1 x set mini F3 or F4 Flytower Flight Controller
1 x 5.8G 25mW Transmitter
1 x 600TVL camera
4 x 1104 7500kv motor
4 x 2030 red propeller
