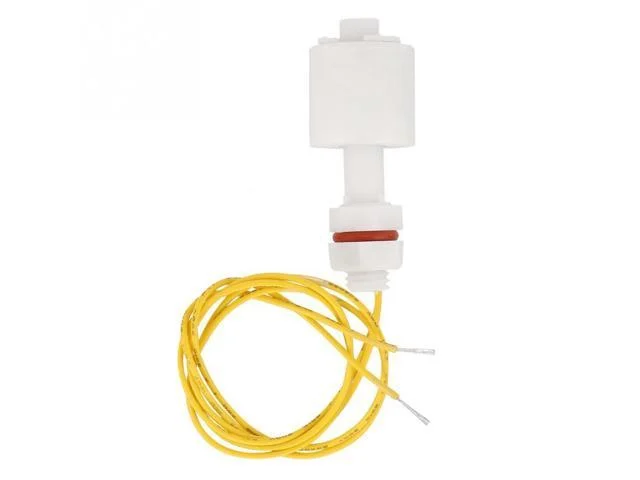

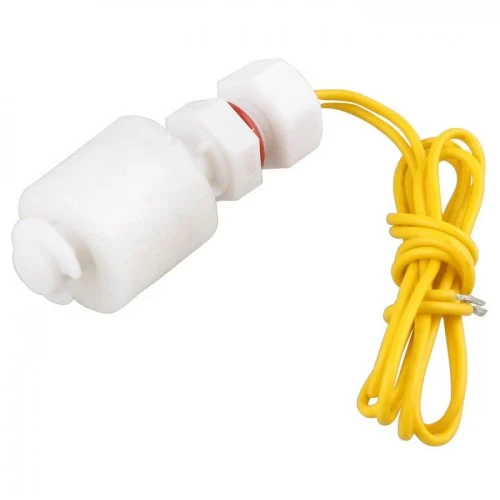

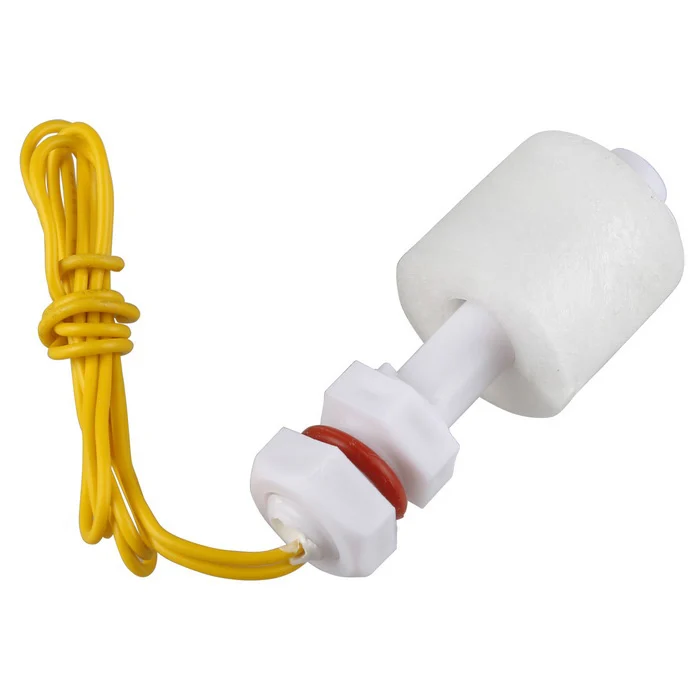

- Contact Rating: 10 W.
- Switching Voltage: 220 V.
- Switching Current: 0.5 A.
- Breakdown Voltage: 220 VDC.
- Carry Current: 1 A.
- Contact Resistance: 100 mΩ.
-49%
Related products
-
DIY Learning and Robot Kits, Sensors
AEROKART INDIA -Smart Dustbin Project Components – Arduino Project
-33%
DIY Learning and Robot Kits, SensorsAEROKART INDIA -Smart Dustbin Project Components – Arduino Project
This combo containing all products needed to make a smart dustbin that opens automatically when someone comes near to the dustbin.
The Arduino Uno R3 Compatible Board is a microcontroller board that is based on the ATmega328. Arduino Uno has 14 digital input or output pins, 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.This HC-SR04-Ultrasonic Distance Measuring Sensor is a very popular sensor that is found in many applications where it requires measuring distance and detect objects. The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do. The module has two eyes-like projects in the front which form the Ultrasonic transmitter and Receiver.
The Micro Servo 9G is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight.
This is the combo of 20CM Wire Color Jumper Cable, M-M, M-F, F-F 10PCS of wire in each strip of cable. It is very flexible and easily detachable to no. of wires to your requirement. Mostly it can be used for Orange Pi, Banana Pi, Raspberry Pi, Arduino, and other mini PC and development boards.
This is a general 9v Battery With Battery Snap Connector to DC barrel jack adapter for all your project and application needs. One can use this adapter to power up any DC barrel jack-based power connector using a standard 9V battery.
Package Includes:
1 x Arduino UNO R3 Compatible Board With Cable
1 x Ultrasonic Module HC-SR04 Distance Measuring Sensor
1 x Tower Pro 9G Micro Servo Motor
1 x HW Battery 9V With Barrel Jack Connector
1 x Combo of 3 type Jumper Cables | F-F | F-M | M-M
Code for the Smart Dustbin:
Do not forget to install Servo.h Library. without this library, code will not compile in Arduino IDE software.
For more details please check this article on Smart Dustbin.
#include //servo library Servo servo; int trigPin = 5; int echoPin = 6; int servoPin = 7; int led= 10; long duration, dist, average; long aver[3]; //array for average void setup() { Serial.begin(9600); servo.attach(servoPin); pinMode(trigPin, OUTPUT); pinMode(echoPin, INPUT); servo.write(0); //close cap on power on delay(100); servo.detach(); } void measure() { digitalWrite(10,HIGH); digitalWrite(trigPin, LOW); delayMicroseconds(5); digitalWrite(trigPin, HIGH); delayMicroseconds(15); digitalWrite(trigPin, LOW); pinMode(echoPin, INPUT); duration = pulseIn(echoPin, HIGH); dist = (duration/2) / 29.1; //obtain distance } void loop() { for (int i=0;i<=2;i++) { //average distance measure(); aver[i]=dist; delay(10); //delay between measurements } dist=(aver[0]+aver[1]+aver[2])/3; if ( dist<50 ) { //Change distance as per your need servo.attach(servoPin); delay(1); servo.write(0); delay(3000); servo.write(150); delay(1000); servo.detach(); } Serial.print(dist); }SKU: n/a -
Sensors
PIR Motion Detector Sensor Module
The HC-SR501 PIR Motion Detector Sensor Module is a pyroelectric device that detects motion by measuring changes in the infrared levels emitted by surrounding objects. This motion can be detected by checking for a high signal on a single I/O pin.
The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer.
It is used to sense the movement of people, animals, or other objects. They are commonly used in burglar alarms and automatically-activated lighting systems. Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc.
Features:
- Compact size
- Infrared sensor: dual-element, low noise, high sensitivity
- Blockade time: 2.5s (Default)
- Infrared Sensor with Control Circuit Board
- The Sensitivity and Holding Time Can be Adjusted
- Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
- Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).
SKU: n/a
