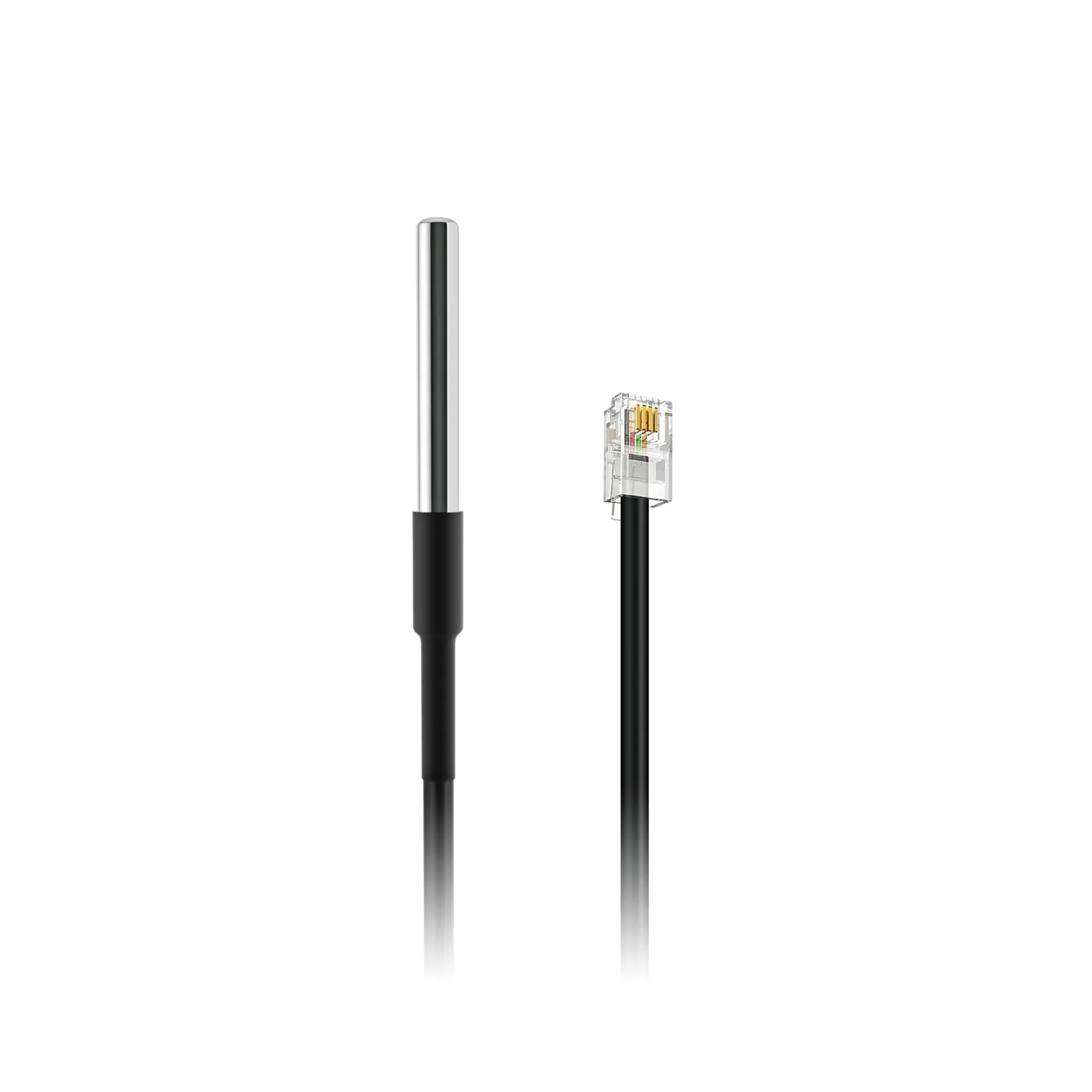

- Model: SONOFF DS18B20
- Temperatures Range: -55 to +125ºc
- Accuracy from -10 to +85ºc
- Material: Stainless steel (Probe)
- Weight: 26g
-24%
Based on 0 reviews
Be the first to review “SONOFF DS18B20 Waterproof temprature sensor (RJ9 4P4C connector)”
Related products
-
DIY Learning and Robot Kits, Sensors
Arduino Sensors Combo of 5 Kit
This is a basic combo for Arduino and Robotics starter. This set can be used for obstacle sensing cars, Ultrasonic radars, school projects i.e. automatic barrier, automatic light, etc. This combo includes an ultrasonic sensor, motion sensor, IR obstacle sensor, LDR, SG90 Servo motor.
HC-SR04-Ultrasonic Distance Measuring Sensor is a very popular sensor that is found in many applications where it requires measuring distance and detect objects.
HC-SR501 PIR Motion Detector Sensor Module is a pyroelectric device that detects motion by measuring changes in the infrared levels emitted by surrounding objects. This motion can be detected by checking for a high signal on a single I/O pin.
IR sensor module is adaptable to the environment, with a working voltage of 3.3 V to 5 V. It has a pair of infrared transmitting and receiving tubes when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving by the tube.
Photoresistor also is known as LDR(Light Dependent Resistor) as the names imply, changes the resistance with the variation in the amount of light. This particular photoresistor has a resistance of 5-10k Ohm in light and about 500k Ohm resistance in the dark.
Micro Servo 9GÂ is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat, and truck use.
SKU: n/a -
Sensors
RC522 RFID 13.56MHZ Reader Writer Module
RC522 – RFID Reader /Writer with Cards Kit includes a 13.56MHz RF reader and writer module that uses an RC522 IC and two S50 RFID cards tag. The MF RC522 is an integrated transmission module for contactless communication at 13.56 MHz. RC522 supports ISO 14443A/MIFARE mode. RC522 – RFID Reader features an outstanding modulation and demodulation algorithm to serve effortless RF communication at 13.56 MHz. The S50 RFID Cards will ease up the process helping you to learn and add the 13.56 MHz RF transition to your project.
The module uses SPI to communicate with microcontrollers. The open-hardware community already has a lot of projects exploiting the RC522 – RFID Communication, using Arduino.
Features:-
- The low-voltage, low-cost, small size of the non-contact card chip to read and write.
- 13.56MHz contactless communication card chip.
- MFRC522 supports the MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
- ISO14443A frames and error detection.
- Suitable for Smart meters and portable handheld devices.
- Advanced modulation and demodulation concept completely integrated with all types of 13.56MHz passive contactless communication methods and protocols.
- 14443A compatible transponder signals.
- Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
- The reader and RF card terminal design meet advanced application development and production needs.
- Can be directly loaded into the various reader molds, very convenient.
Specifications:-
- Operating Frequency: 13.56MHz
- Reader Distance: ≥ 50mm / 1.95″ (mifare 1)
- Operating Current :13-26mA / DC 3.3V
- Idle Current :10-13mA / DC 3.3V
- Peak Current: < 30mA
- Sleep Current: < 80uA
- Data transfer rate: Maximum 10Mbit/s
- Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
- Environmental Storage Temperature: -40 – 85 degrees Celsius
- Environmental Operating Temperature: -20 – 80 degrees Celsius
- Relative humidity: 5% – 95%
- Module interface: SPI
SKU: n/a
