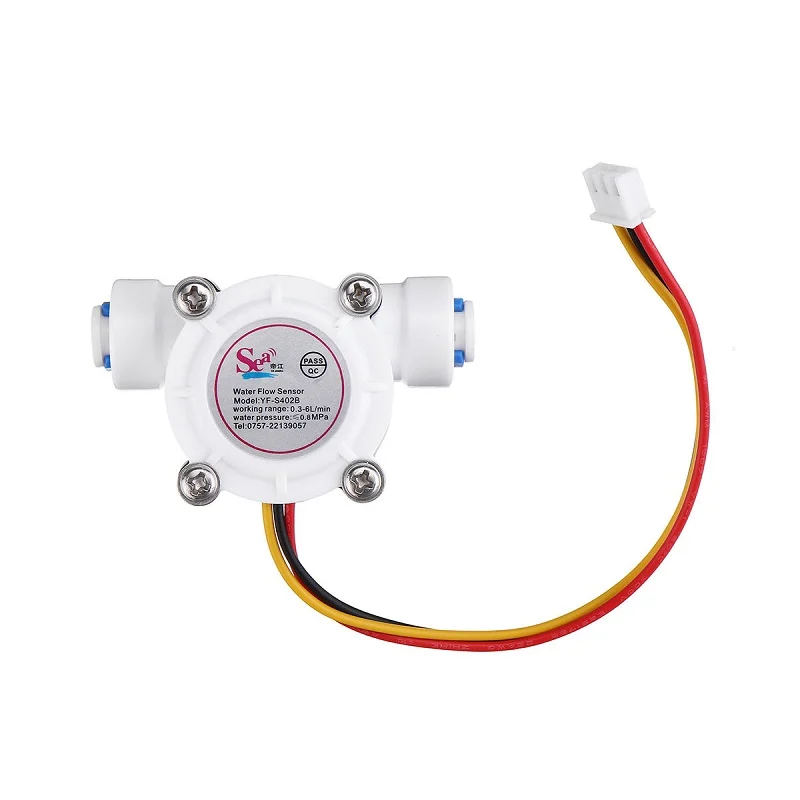

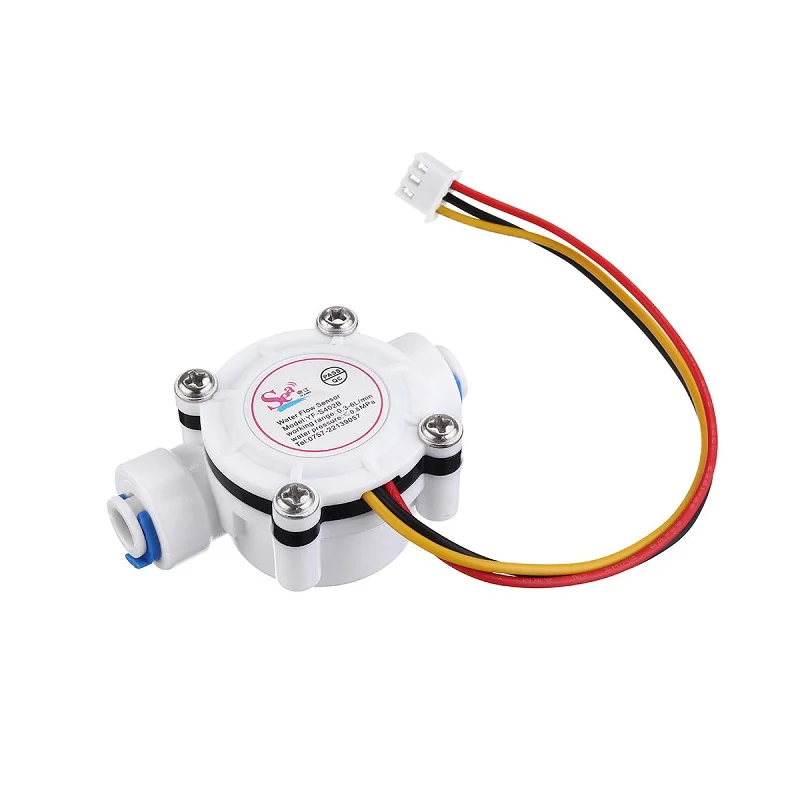

- Flow Range:0.3 to 6L
- Input/Output Diameter: 6.5mm
- Minimum rated working voltage: DC 5~24V
- Max. working current: 15mA (DC 5V)
- Working voltage range: DC 5~24V
- Load capability: <= 10mA (DC 5V)
-34%
Related products
-
Sensors
RC522 RFID 13.56MHZ Reader Writer Module
RC522 – RFID Reader /Writer with Cards Kit includes a 13.56MHz RF reader and writer module that uses an RC522 IC and two S50 RFID cards tag. The MF RC522 is an integrated transmission module for contactless communication at 13.56 MHz. RC522 supports ISO 14443A/MIFARE mode. RC522 – RFID Reader features an outstanding modulation and demodulation algorithm to serve effortless RF communication at 13.56 MHz. The S50 RFID Cards will ease up the process helping you to learn and add the 13.56 MHz RF transition to your project.
The module uses SPI to communicate with microcontrollers. The open-hardware community already has a lot of projects exploiting the RC522 – RFID Communication, using Arduino.
Features:-
- The low-voltage, low-cost, small size of the non-contact card chip to read and write.
- 13.56MHz contactless communication card chip.
- MFRC522 supports the MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
- ISO14443A frames and error detection.
- Suitable for Smart meters and portable handheld devices.
- Advanced modulation and demodulation concept completely integrated with all types of 13.56MHz passive contactless communication methods and protocols.
- 14443A compatible transponder signals.
- Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
- The reader and RF card terminal design meet advanced application development and production needs.
- Can be directly loaded into the various reader molds, very convenient.
Specifications:-
- Operating Frequency: 13.56MHz
- Reader Distance: ≥ 50mm / 1.95″ (mifare 1)
- Operating Current :13-26mA / DC 3.3V
- Idle Current :10-13mA / DC 3.3V
- Peak Current: < 30mA
- Sleep Current: < 80uA
- Data transfer rate: Maximum 10Mbit/s
- Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
- Environmental Storage Temperature: -40 – 85 degrees Celsius
- Environmental Operating Temperature: -20 – 80 degrees Celsius
- Relative humidity: 5% – 95%
- Module interface: SPI
SKU: n/a -
DIY Learning and Robot Kits, Sensors
AEROKART INDIA -Smart Dustbin Project Components – Arduino Project
-33%
DIY Learning and Robot Kits, SensorsAEROKART INDIA -Smart Dustbin Project Components – Arduino Project
This combo containing all products needed to make a smart dustbin that opens automatically when someone comes near to the dustbin.
The Arduino Uno R3 Compatible Board is a microcontroller board that is based on the ATmega328. Arduino Uno has 14 digital input or output pins, 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.This HC-SR04-Ultrasonic Distance Measuring Sensor is a very popular sensor that is found in many applications where it requires measuring distance and detect objects. The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do. The module has two eyes-like projects in the front which form the Ultrasonic transmitter and Receiver.
The Micro Servo 9G is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight.
This is the combo of 20CM Wire Color Jumper Cable, M-M, M-F, F-F 10PCS of wire in each strip of cable. It is very flexible and easily detachable to no. of wires to your requirement. Mostly it can be used for Orange Pi, Banana Pi, Raspberry Pi, Arduino, and other mini PC and development boards.
This is a general 9v Battery With Battery Snap Connector to DC barrel jack adapter for all your project and application needs. One can use this adapter to power up any DC barrel jack-based power connector using a standard 9V battery.
Package Includes:
1 x Arduino UNO R3 Compatible Board With Cable
1 x Ultrasonic Module HC-SR04 Distance Measuring Sensor
1 x Tower Pro 9G Micro Servo Motor
1 x HW Battery 9V With Barrel Jack Connector
1 x Combo of 3 type Jumper Cables | F-F | F-M | M-M
Code for the Smart Dustbin:
Do not forget to install Servo.h Library. without this library, code will not compile in Arduino IDE software.
For more details please check this article on Smart Dustbin.
#include //servo library Servo servo; int trigPin = 5; int echoPin = 6; int servoPin = 7; int led= 10; long duration, dist, average; long aver[3]; //array for average void setup() { Serial.begin(9600); servo.attach(servoPin); pinMode(trigPin, OUTPUT); pinMode(echoPin, INPUT); servo.write(0); //close cap on power on delay(100); servo.detach(); } void measure() { digitalWrite(10,HIGH); digitalWrite(trigPin, LOW); delayMicroseconds(5); digitalWrite(trigPin, HIGH); delayMicroseconds(15); digitalWrite(trigPin, LOW); pinMode(echoPin, INPUT); duration = pulseIn(echoPin, HIGH); dist = (duration/2) / 29.1; //obtain distance } void loop() { for (int i=0;i<=2;i++) { //average distance measure(); aver[i]=dist; delay(10); //delay between measurements } dist=(aver[0]+aver[1]+aver[2])/3; if ( dist<50 ) { //Change distance as per your need servo.attach(servoPin); delay(1); servo.write(0); delay(3000); servo.write(150); delay(1000); servo.detach(); } Serial.print(dist); }SKU: n/a -
Basic Electronic Components, Sensors
Eye Blink Sensor Project Kit
The Eye-Blink sensor works by illuminating the eye and eyelid area with infrared light, then monitoring the changes in the reflected light using a phototransistor and differentiator circuit.
This includes Arduino Nano, Eye Blink sensor, Buzzer, Battery, Clip Connector, and Switch.
Eye Blink sensor senses the eyeblink using infrared. The Variation Across the eye will vary as per eye blink. If the eye is closed the output is high otherwise the output is low.
Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) or ATmega168 (Arduino Nano 2.x). It has more or less the same functionality as the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
A Standard Active Buzzer Module for Arduino is an audio signaling device, which may be mechanical, electromechanical, or piezoelectric. This PCB Mounted Active Buzzer Module can produce a range of sound tones depending on the input frequency, i.e it can generate tones between 1.5 to 2.5 kHz by switching it on and off at different frequencies either using delays or PWM.
This is a general 9v Battery for all your project and application needs.
A clip Connector is used to connect a 9V battery to the application. This snap power cable to DC 9V clip male line battery adapter for mostly used to power Arduino boards.
Rocker switch is Rocker Switch SPST ON/OFF Microswitch.
SKU: n/a
