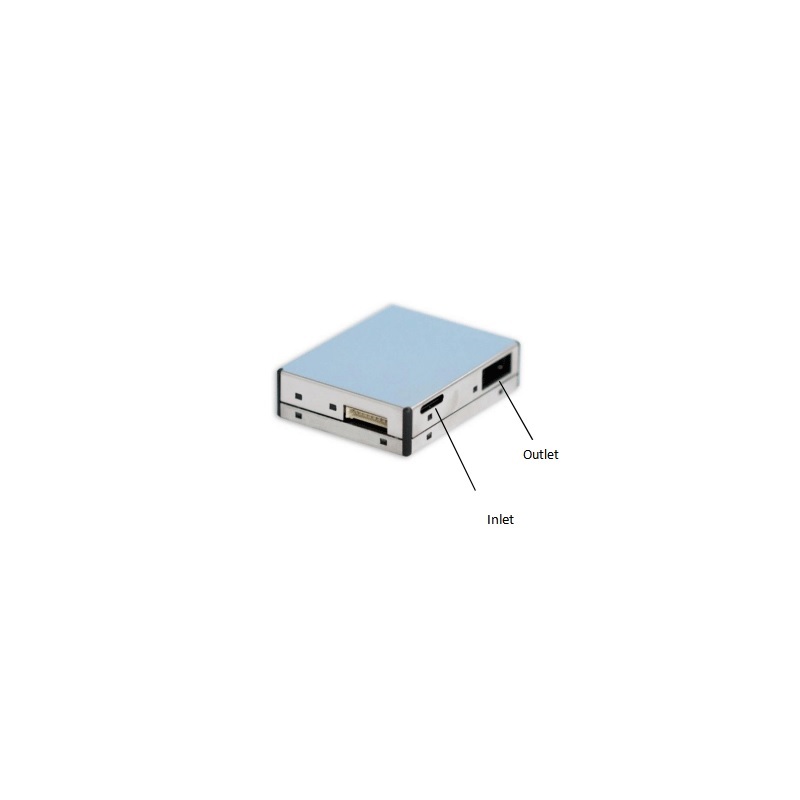

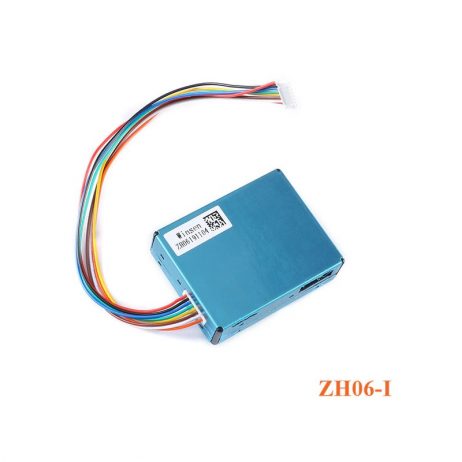

- Model: ZH06 – I
- Test type: PM1.0, PM2.5, PM10
- Output: UART, PWM
- Working Voltage: 4.9V～5.5V
-27%
Based on 0 reviews
Be the first to review “Winsen ZH06 Laser Dust Sensor”
