(ESC) Drone Speed Controller

1 Output: Continuous 60A, Burst 80A up to 10 seconds.
2 Input Voltage: 3-6S Lipo, 5-18 cells NiMH.
3 BEC: 5A / 5V Switch mode BEC.
4 Refresh rate of the throttle signal: 50Hz to 432Hz.
5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
6 Size: 77mm*35mm*14mm.
7 Weight: 63g

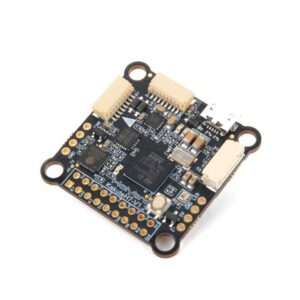

1. MCU – STM32H743 32-bit processor running at 480 MHz
2. IMU – MPU6000
3. Barometer – BMP280
4. OSD – AT7456E
5. Onboard Bluetooth chip – ESP32-C3

1. Direct plug design,
2. Works with most USB port and USB extension cable
3.  Low power consumption design
4. Onboard 2×3 Pin AVR ISP port
5.  3pin servo connector can be used as servo or C2 connection
6. Supports SIMONK and BLHELI ESC, KKflashtool compatible
7. KKflashtool and RapidFlash compatible

1. Input: 2-5S input Maximum input 6S (close brake)
2. 32bit architecture
3. Telemetry capability (voltage, current, temperature, speed)
4. All inputs and outputs are protected against overvoltage (~30V) and under voltage (~-30V). 3,3 and 5V capable
5. Supports all common Dshot commands like Turtle Mode, 3D mode and change of rotation
6. Overcurrent protection (measures the current and reduces it to max. 40A)

1. Running current: 40A(Output: Continuous 40A, Burst 60A up to 10 Secs.)
2.  Input Voltage: DC 6-22.2V(2-4S Lixx)
3. BEC: 5V/3A
4.  With SimonK updated firmware for Multi-Copter

1. Model: Readytosky 80A ESC.
2. Burst Current: 100A.
3. Constant Current: 80 A.
4. BEC: 5A/5V.
5. Suitable Batteries: 2~6S LiPoly.
6. Throttle signal refresh rate (Hz): 50 ~ 432.

1. LiPo Battery Input: 1 – 3S.
2. Continuous Current: 12A.
3. Burst Current(10S): 15A.
4. BEC Mode: Linear.
5. BEC Output: 1A/5V.

1. Model: SIMONK 30A.
2. Constant Current: 30A (Max 40A < 10 sec).
3. BEC: 5V 2A.
4. Suitable Batteries: 2-3S LiPo.
5. Application: BLDC Motors, Multirotor, Rc Planes etc.

1. Voltage range: 4 V-16.8V
2. Current: 30A
3. Burst current: 35 A
4. BEC output: 5 V 3A
5. Li-ion/Li-poly:2-4S,or Ni-MH/Ni-Cd:5-12S

1. Output: Continuous 40A, Burst 60A up to 10 Secs.
2. Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
3. BEC: 3A / 5V (Switch mode).
4. Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: Brushless Motor)
