| Specification | Details |
|---|---|
| Frequency | 433 MHz |
| Channels | 12 Channels |
| Remote Control Range | Up to 1000 meters (line of sight) |
| Control Mode | Momentary, Toggle, Latching Modes |
| Receiver Sensitivity | -105 dBm |
| Output Type | Relay Output |
| Relay Current Capacity | 10A 250V AC / 10A 30V DC per channel |
| Operating Voltage (Receiver) | DC 12V |
| Transmitter Power Supply | 12V 23A Battery (Included) |
| Decoding Type | Fixed Code, Learning Code |
| Learning Method | Intelligent Learning Pairing with Remote |
| Antenna Type (Receiver) | External Antenna for Extended Range |
| Material | Durable ABS Plastic and Metal |
| Operating Temperature | -40°C to +80°C |
| LED Indicator | Yes, for Power and Signal Status |
| Applications | Remote Control Systems for Gates, Doors, Lights, Motors, etc. |
| SKU | RW-RF066 |
-9%
Motors | Drivers | Pumps | Actuators

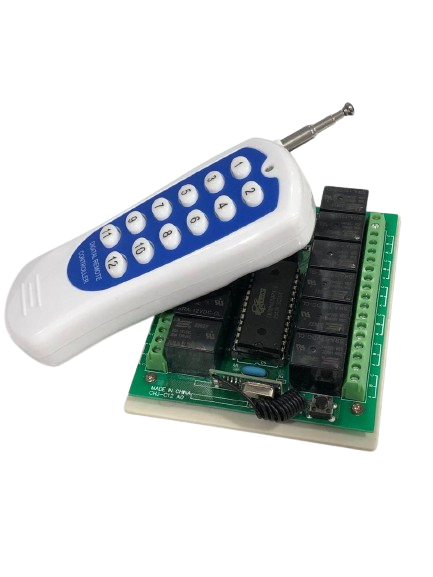

12CH Relay Wireless RF Remote Control Switch Receiver with 1000m Long Range 12 Channel transmitter remote 433MHz
…
₹2,150.00 ₹2,350.00
Based on 0 reviews
Be the first to review “12CH Relay Wireless RF Remote Control Switch Receiver with 1000m Long Range 12 Channel transmitter remote 433MHz”
