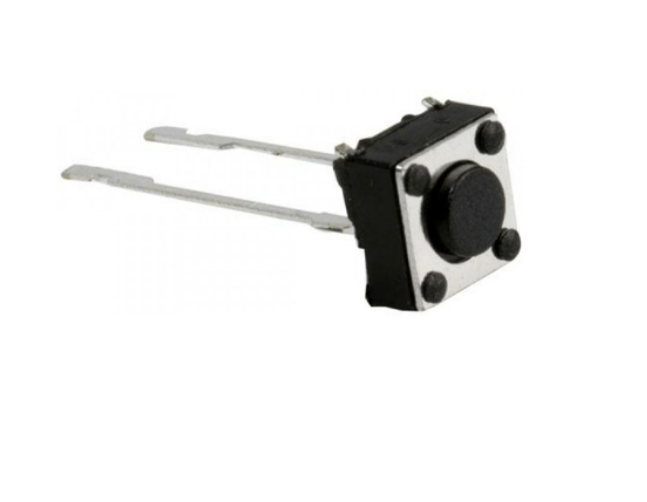

2Pin Round Pushbutton SPST Straight Tactile Micro Switch Through Hole (Pack of 5)


2Pin Round Pushbutton SPST Straight Tactile Micro Switch Through Hole

A small SPST switch with two pins and a tactile micro button

Features
  • Bounce Time: 10 msec.
  • SPST momentary ON
  • Contact Resistance: 100mohm.
  • Lead type: PC
  • Rating: DC 12V 50mA
  • Operating Force: 160±30 or 250±50gf
  • Travel: 0.3±0.15mm
  • Contact Resistance: 100mohm MAX.
  • Life Cycles: 100,000 Cycles MIN

20.00 30.00

Compare

2Pin Round Pushbutton SPST Straight Tactile Micro Switch Through Hole

A small SPST switch with two pins and a tactile micro button

Features
  • Bounce Time: 10 msec.
  • SPST momentary ON
  • Contact Resistance: 100mohm.
  • Lead type: PC
  • Rating: DC 12V 50mA
  • Operating Force: 160±30 or 250±50gf
  • Travel: 0.3±0.15mm
  • Contact Resistance: 100mohm MAX.
  • Life Cycles: 100,000 Cycles MIN
