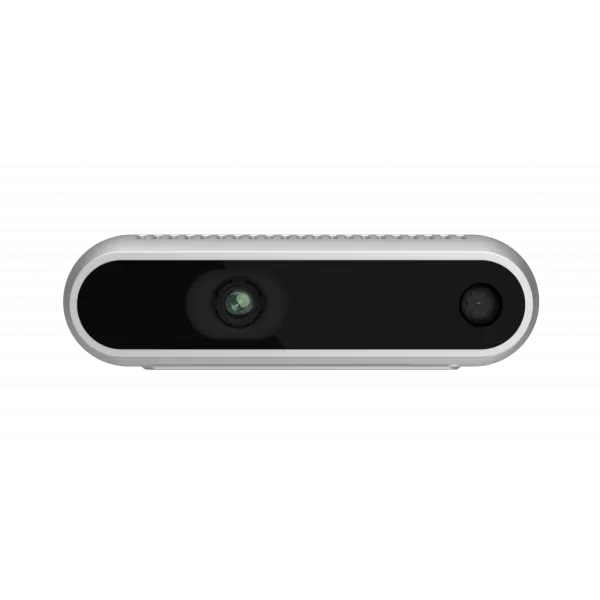

Arducam Cameras and Accessories, FPV CamerasIntel® RealSense™ Depth Camera D435f
55
|
Model |
Depth Camera D435if |
| Features |
Use environment: |
Indoor/Outdoor |
| Ideal Range: |
.3 m to 3 m |
| Depth |
Depth technology: |
Stereoscopic |
| Minimum Depth Distance (Min-Z) at Max Resolution: |
~28 cm |
| Depth Accuracy: |
<2% at 2 m(2) |
| Image sensor technology: |
Global Shutter |
| Depth Field of View (FOV): |
87° × 58°(1) |
| Depth output resolution: |
Up to 1280 × 720 |
| Depth frame rate: |
Up to 90 fps |
| Filter |
Depth Filter |
IR Pass |
| RGB Filter |
IR Cut |
| RGB |
RGB frame resolution: |
Up to 1920 × 1080 |
| RGB frame rate: |
30 fps |
| RGB sensor technology: |
Rolling Shutter |
| RGB sensor FOV (H × V): |
69 × 42°(1) |
| RGB sensor resolution |
2 MP |
| Major Components |
Camera module: |
Intel RealSense Module D430 + RGB Camera |
| Vision Processor Board: |
Intel RealSense Vision Processor D4 |
| Physical |
Form factor: |
Camera Peripheral |
| Connectors: |
USB‑C* 3.1 Gen 1* |
| Length × Depth × Height: |
90 mm × 25.8 mm × 25 mm |
Mounting mechanism:
|
- One 1/4‑20 UNC thread mounting point
- Two M4 thread mounting points
|
₹49,000.00 ₹55,000.00
2 in stock
