- Product: Hall Effect Proximity Sensor, Flange Mount, 55100 Series
- Supply Voltage: 2.7 to 24 Vdc
- Output High Voltage: Sinking Output
- Output Low Voltage: 0.4 @ 20mA
- Output Current: 25 mA
- Reverse/over-voltage protection
- Built-in temperature compensation
-30%
Sensors

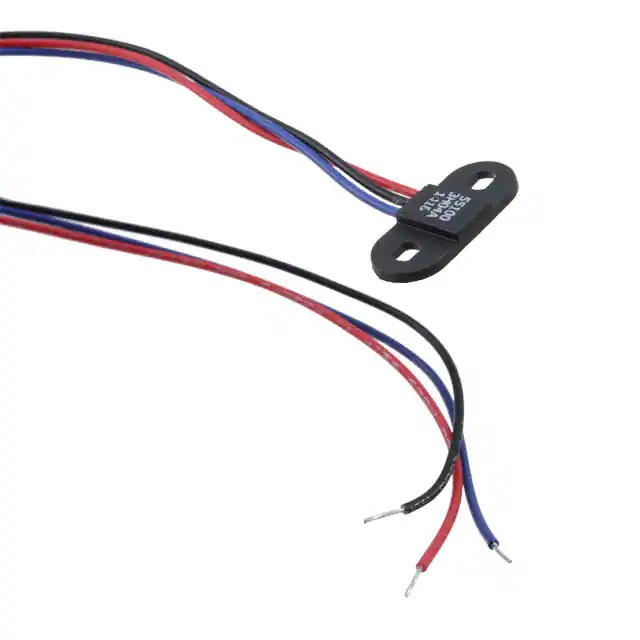

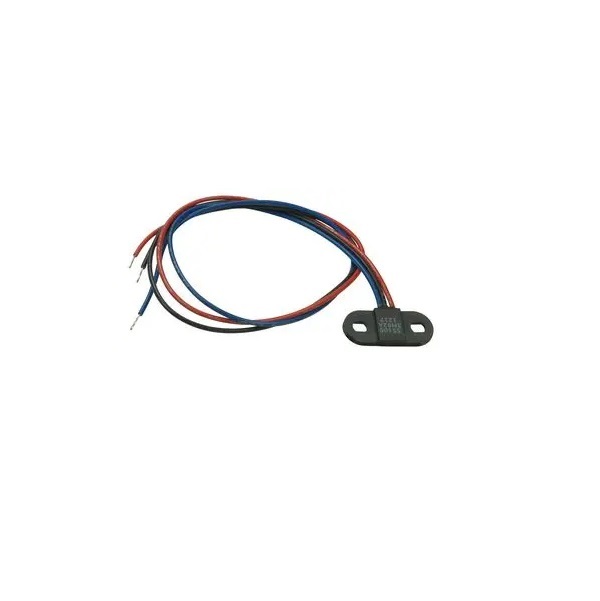

LITTELFUSE Hall Effect Proximity Sensor, Flange Mount, 55100 Series, 3 Wire, 130 G, 3.8 to 24 Vdc
- Product: Hall Effect Proximity Sensor, Flange Mount, 55100 Series
- Supply Voltage: 2.7 to 24 Vdc
- Output High Voltage: Sinking Output
- Output Low Voltage: 0.4 @ 20mA
- Output Current: 25 mA
- Reverse/over-voltage protection
- Built-in temperature compensation
₹2,299.00 ₹3,299.00
Based on 0 reviews
Be the first to review “LITTELFUSE Hall Effect Proximity Sensor, Flange Mount, 55100 Series, 3 Wire, 130 G, 3.8 to 24 Vdc”
