- Brand: M5 Stack

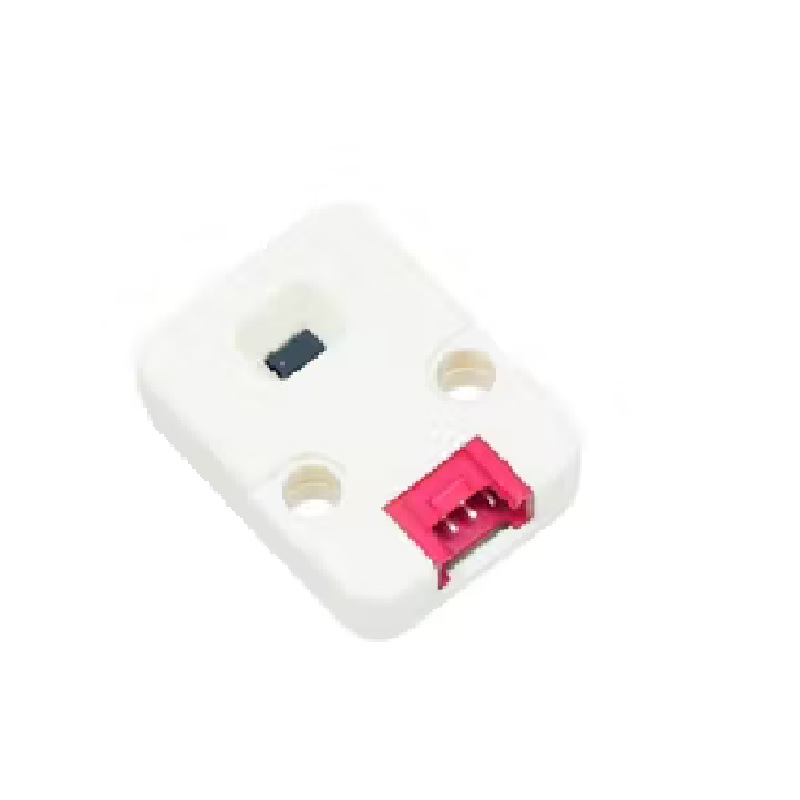

- Product: Distance Ranging Sensor
- Model: (VL53L0X)
- Operating Voltage: 2.6 to 3.5 V
- Operating Temperature: -20 to 70°C
- I2C: Up to 400 kHz (FAST mode) serial bus Address: 0x52
-33%
Based on 0 reviews
Be the first to review “M5Stack Time-of-Flight Distance Ranging Sensor Unit (VL53L0X)”
