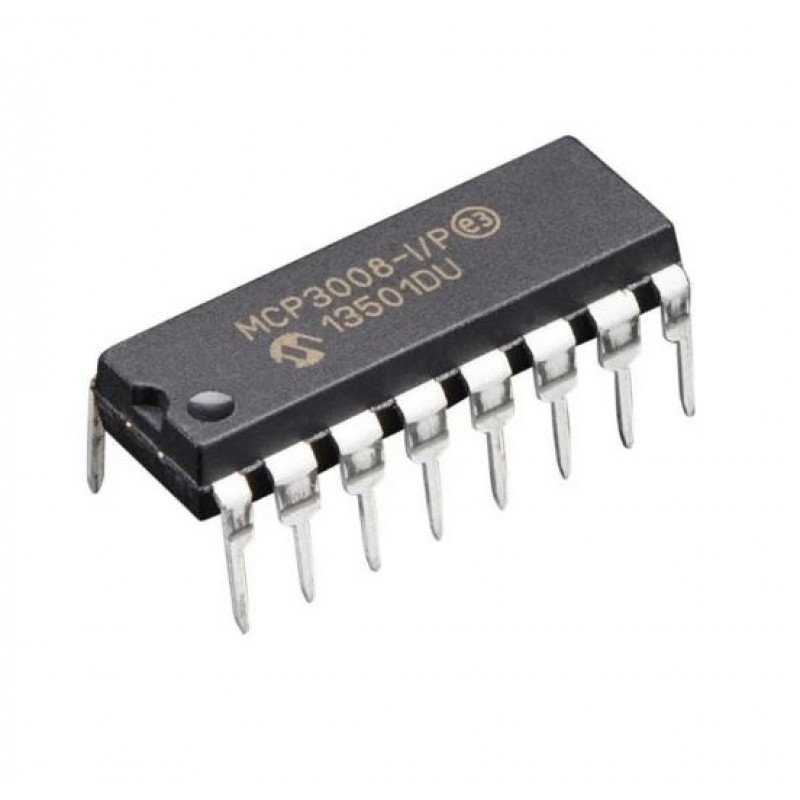

MCP3008 8-Channel 10-Bit A/D Converter with SPI Interface IC DIP-16 Package

The Microchip Technology Inc.MCP3008 8-Channel 10-Bit devices are successive approximation 10-bit Analogto-Digital (A/D) converters with on-board sample and hold circuitry.  The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential Non linearity (DNL) and Integral Non linearity (INL) are specified at ±1 LSB. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol.

The devices are capable of conversion rates of up to 200 ksps. The MCP3008 8-Channel 10-Bit operate over a broad voltage range (2.7V – 5.5V). Low-current design permits operation with typical standby currents of only 5 nA and typical active currents of 320 µA. The MCP3008 is offered in 16- pin PDIP and SOIC packages.

Features:

1. 10-bit resolution
2. ± 1 LSB max DNL
3. ± 1 LSB max INL
4. 8 (MCP3008) input channels
5. Analog inputs programmable as single-ended or pseudo-differential pairs
6.  On-chip sample and hold
7. SPI serial interface (modes 0,0 and 1,1)
8. Single supply operation: 2.7V – 5.5V
9. 200 ksps max. sampling rate at VDD = 5V
10. 75 ksps max. sampling rate at VDD = 2.7V
11. Low power CMOS technology • 5 nA typical standby current, 2 µA max.
12. 500 µA max. active current at 5V
13. Industrial temp range: -40°C to +85°C
