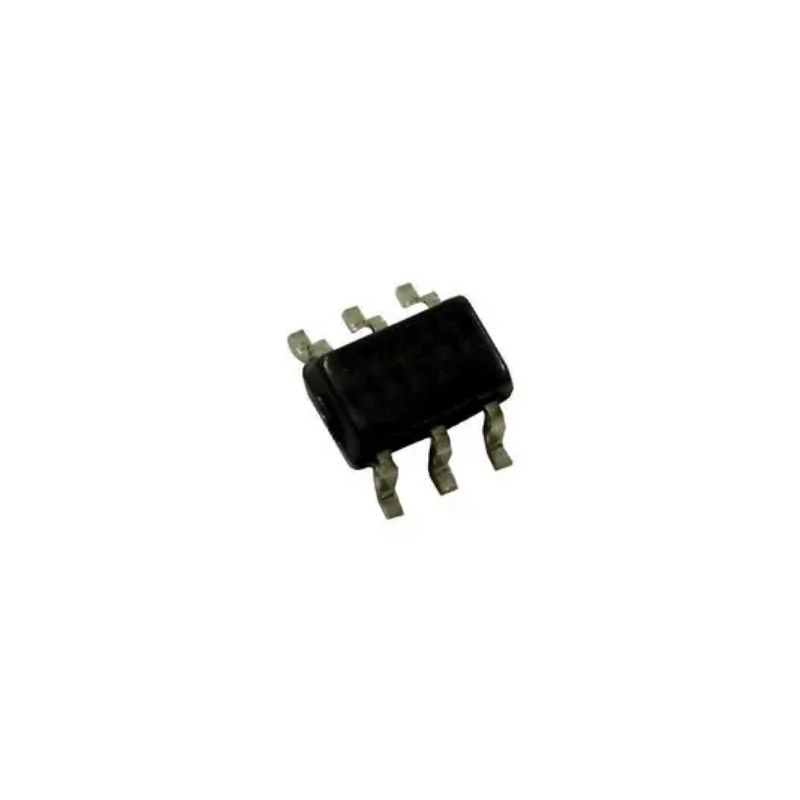

MCP3425A0T-E/CH-MICROCHIP-MCP3425A0T-E/CH-Analogue to Digital Converter, 16 bit, 15 SPS, Differential, I2C, Single, 2.7 V

MCP3425 is a single channel low-noise, high accuracy ΔΣ A/D converter with differential inputs. Typical applications include portable instrumentation , weigh scales and fuel gauges, temperature sensing with RTD, thermistor and thermocouple, bridge sensing for pressure, strain and force.

Specifications:

Operating Temperature Min: -40°C
No. of Pins: 6Pins
Product Range: Single 16-Bit Sigma-Delta ADCs
Operating Temperature Max: 125°C
Supply Voltage Min: 2.7V
Supply Voltage Max: 5.5V
ADC / DAC Case Style: SOT-23
Data Interface: I2C
Sampling Rate: 15SPS
Supply Voltage Type: Single
Resolution (Bits): 16bit
Input Channel Type: Differential
