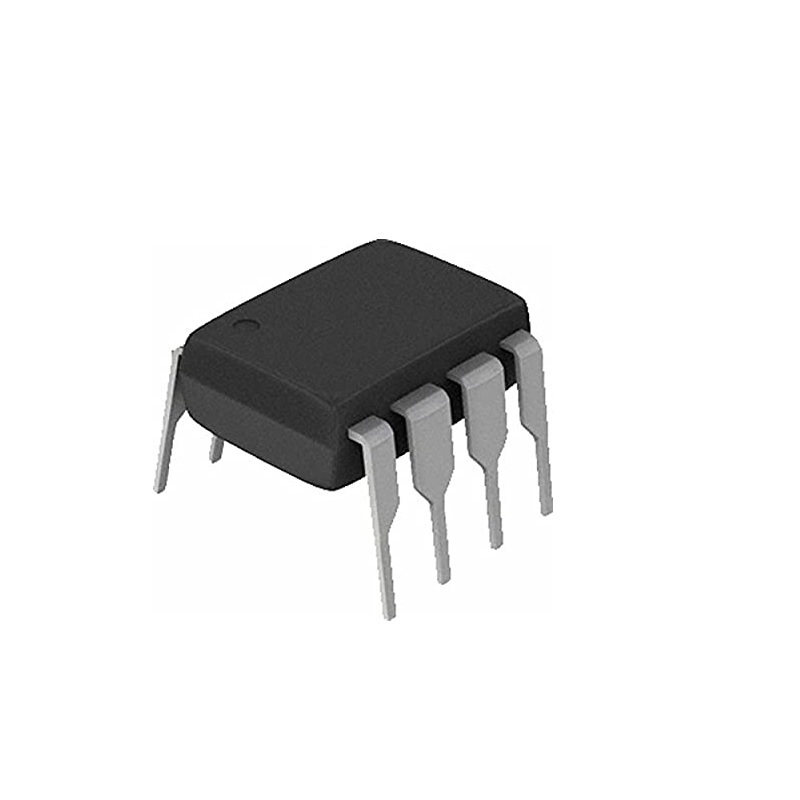

MCP4921 12 Bit Voltage Output Digital to Analog Converter (DAC) with SPI Interface IC DIP-8 Package

The MCP4921 is a 12-bit Digital-to-Analog Converter (DAC) from Microchip Technology, featuring a voltage output and SPI interface. It supports both unipolar and bipolar output polarities and has a settling time of 4.5 μs. The device operates with a supply voltage of 2.7V to 5.5V and provides low power consumption with a nominal current of 175 μA. It has a maximum operating temperature of 125°C and comes in a lead-free PDIP-8 package, ideal for various industrial applications.

Features :

1. Resolution: 12-bit
2. Output Type: Voltage output (unipolar/bipolar)
3. Interface: SPI (Serial Peripheral Interface)
4. Settling Time: 4.5 μs
5. Supply Voltage: 2.7V to 5.5V
6. Nominal Supply Current: 175 μA
7. Operating Temperature Range: -40°C to 125°C
