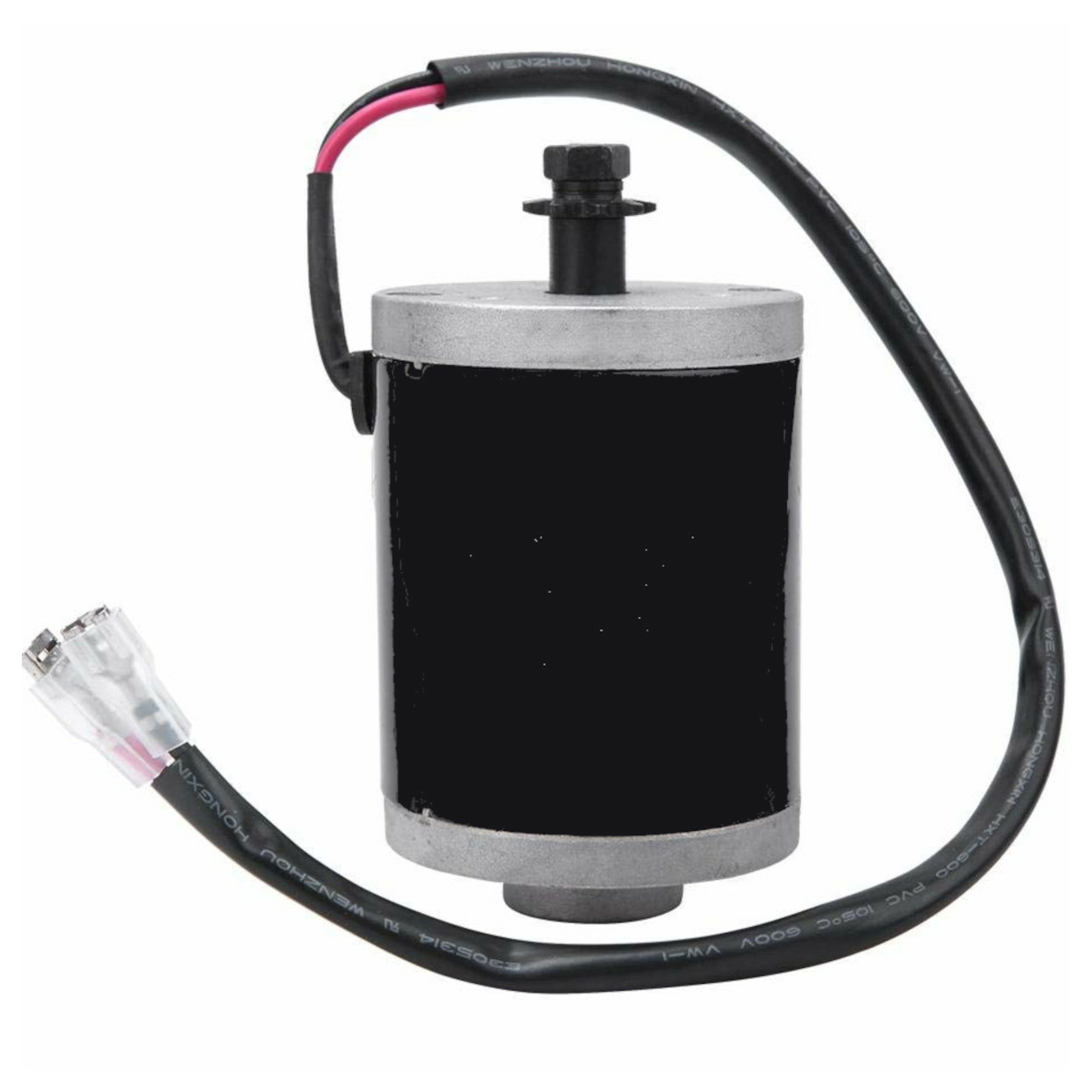

MY6812 150W DC motor is a popular DC motor, that features a High speed, Low torque, low noise, high reliability, easy maintenance, etc. & it’s the most commonly used motor for DIY projects like ATV robots, combat robots, Segways, e-cars, Ebikes, quads, etc.
These are designed with the common mounting block which makes the replacement of a worn or broken motor an easy swap over. They are quite powerful for their small size and extremely reliable. DC motor is capable of rotation in either the clockwise or counterclockwise direction by just reversing the battery polarity to the motor and can be speed-controlled
Specification:
- Rated Voltage: 24V DC
- Rated Output Power: 150W
- Rated Speed: 2750 RPM
- Full Load Current: < 7.15A
- No Load Current: < 0.6A
- Efficiency: > 78%
- Shaft Diameter: 12mm
- Mounting Screw hole: M5
- Applicable chain: 25H chain
- Sprocket: 25H 9T sprocket
- Weight(kg): 1.38 kg
