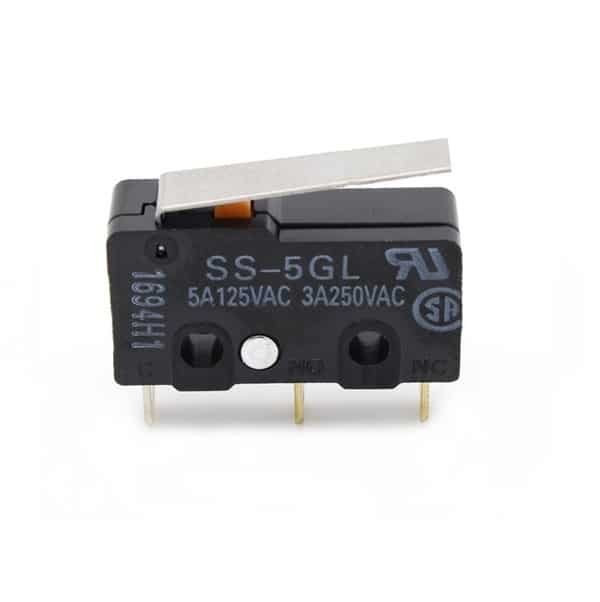

OMRON 3D Printer Limit Switch ENDSTOP SS-5GL

OMRON 3D Printer Limit Switch ENDSTOP SS-5GL

Introducing the OMRON 3D Printer Limit Switch ENDSTOP SS-5GL, a reliable and versatile switch designed for various industrial applications. The Omron SS series features subminiature basic switches known for their outstanding reliability and safety, ensuring peace of mind in your projects.

Applications:

• Industrial automation
• Power management
• Process control
• Security systems

Features:

• Switching capacity: 3A at 250VAC, 5A at 125VAC, 0.1A at 30VDC
• Various actuator types available: pin plunger, hinge, long hinge, simulated roller, hinge roller lever
• Options for solder, quick connect, and PCB terminals
• SPDT, SPST-NC, SPST-NO contact configurations
• Two split springs for enhanced stability and durability
• Economical and compact design with long service life (minimum 30 million operations)
• Overtravel restriction-free design for easy setting
• Wide switching capacity range from micro voltage/current loads to high-capacity loads
• Standard, low force, or super-low force models available
• RoHS compliant
