- Impedance：50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178 - Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
-50%
Electronic Components

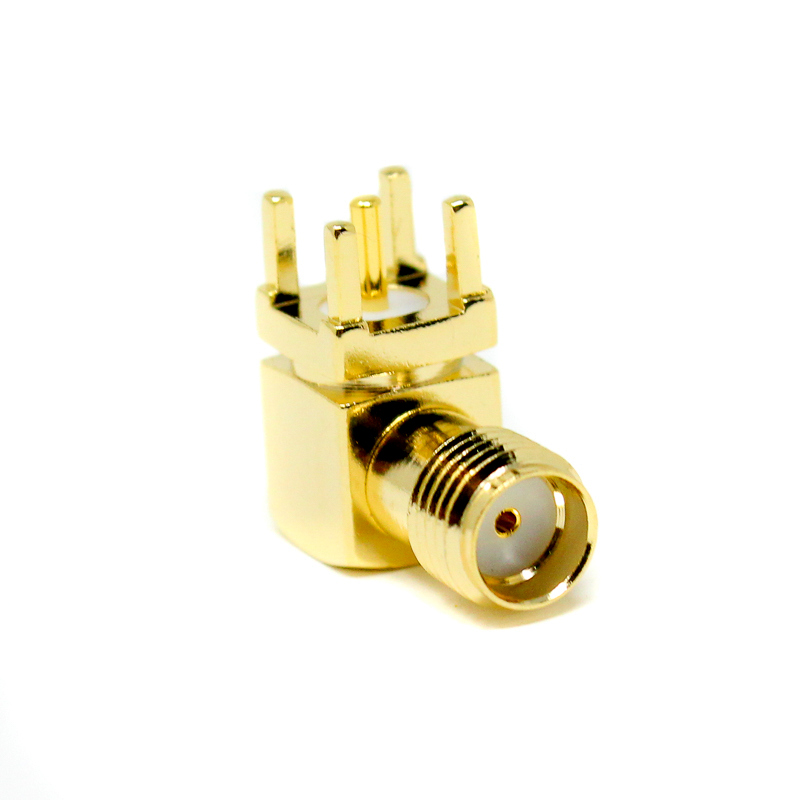

SMA Female Connector Right Angled Through-Hole for PCB Mount
- Impedance：50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178 - Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
₹75.00 ₹150.00
Based on 0 reviews
Be the first to review “SMA Female Connector Right Angled Through-Hole for PCB Mount”
