Brushless Motor MT2204 2300KV CW


  1. Motor KV: 2300(RPM/V)
  2. Maximum Wattage: 350W
  3. Li-PO Batteries: 2S-3S
  4. Shaft Diameter: 5 mm
  5. Maximum Current: 25 A
  6. Maximum Voltage: 15 V

699.00

Compare

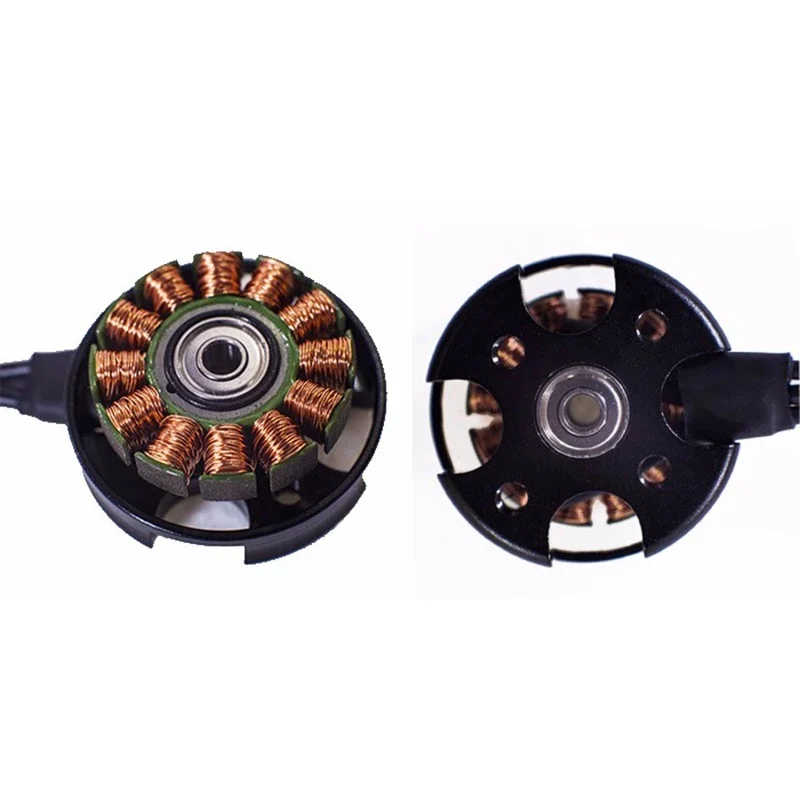

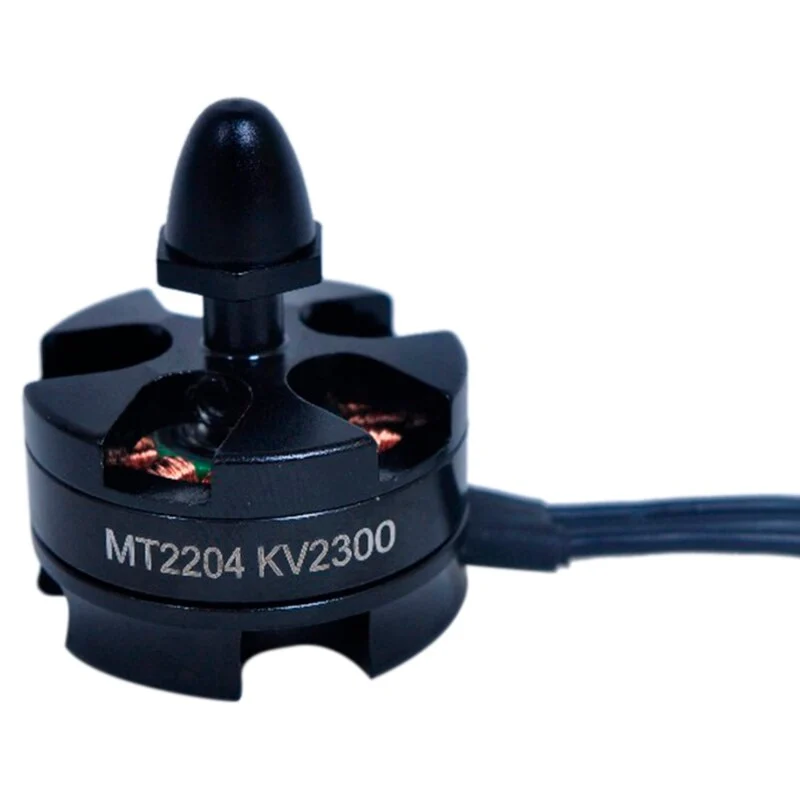

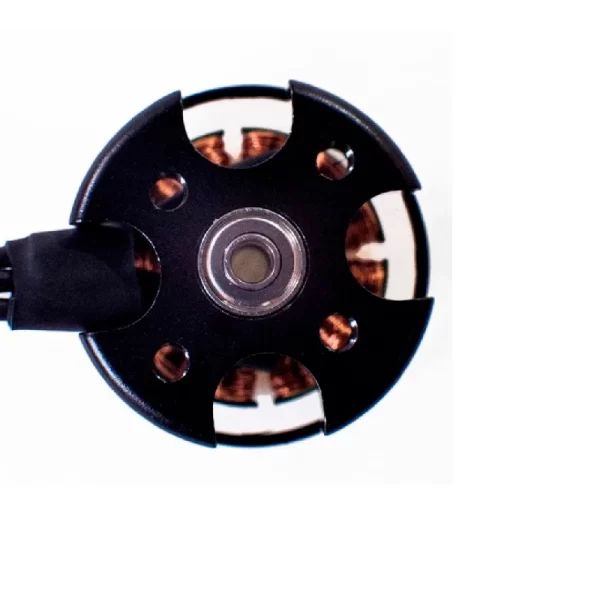

The MT2204 2300KV  Brushless Motor is designed with one thing in mind – maximizing multirotor performance!

The new MT2204 2300KV is the new standard in Multirotor performance. Each motor is built for a specific type/application allowing for further refinement and efficiency/power to be optimized.

Built with the highest quality components from Japan bearings to N45SH magnets and 0.2mm laminations, 180deg oxygen-free copper wire0.005g balancing, the perfect wind laid down. The MT2204-2300KV Multi-Rotor Motor is 100% QC approved, and then the design of each motor is also evaluated for their type of application and including everything from their mounting to the prop type adapters are taken into consideration.

The lower motor frame is chamfered for easy fitment on tighter frames and has plenty of height for mounting hardware to winding clearance.

Multistar Elite is unmatched in quality and value, and the performance speaks for itself. It can be paired with Orange 3S Premium Li-PO and Orange Series HD 5″ Propeller for a unique multirotor flight experience.

If you are wandering to build a drone and don’t know what will be the best motor for you then worry no more, we have got your back. At Robu, we have everything for you to get started with your drone project.



This MT2204-2300KV Multi-Rotor Motor is available in CW/CCW flavors with matching bullet hardware. For CCW motor,

To Explore more Drone motors,
To Explore Various kinds of Propellers,
To Explore Various kinds of ESC’s,


Features :

  1. Equips high-quality Japan Bearings for smooth operation.
  2. It has N45SH Magnets for long life.
  3. Designed with 2mm Laminations for best operational characteristics.
  4. 180deg oxygen-free Copper wire makes them more durable in class.
  5. Shows 0.005g Or better balancing.
  6. Perfect lay-down windings.

Package Includes :

1 x MT2204 2300KV CW Brushless Motor
1 x Compatible Allen Screw-8pcs
