- Power supply needs: 5V
- Interface type: Analog
- Pin Definition: 1-Output 2-GND 3-VCC
- High sensitivity to LPG, natural gas, town gas
- Small sensitivity to alcohol, smoke
-12%
Based on 0 reviews

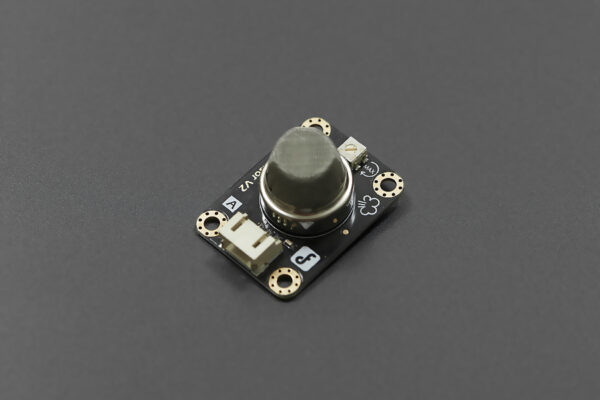

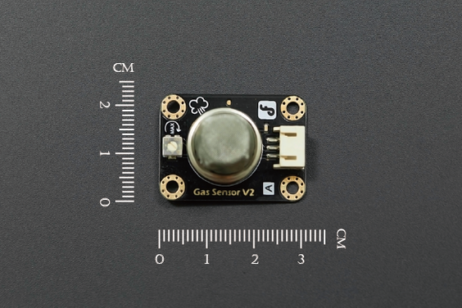

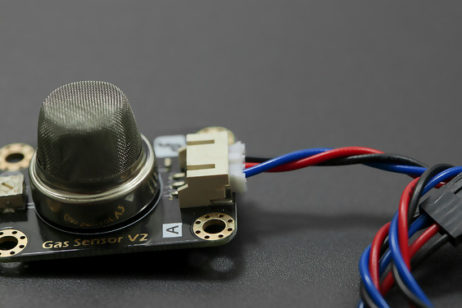

Be the first to review “DFRobot Gravity Analog LPG Gas Sensor (MQ5) For Arduino”
