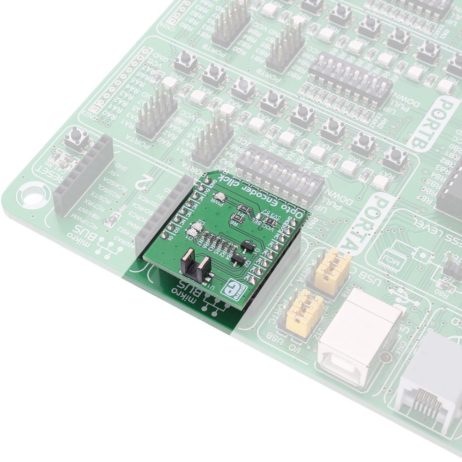

- Type: Optical Sensor
- Interface: GPIO
- Compatibility: mikroBUS
- Click board:Â (28.6 x 25.4 mm)
- Input Voltage: 3.3V or 5V
-11%
Based on 0 reviews
Be the first to review “Mikroe OPTO ENCODER CLICK”
