- Rated current (mA): ≤3600.
- Rated power (W): 7.836.
- Rated Torque (N-cm): 77.4
- Rated speed: 90 RPM.
- Shaft length (mm): 27.
- Shaft diameter (mm): 8.
- Base motor RPM: 6000.
- Back shaft for Encoder Available
- Gear Ratio: 55K.
-32%
Motors | Drivers | Pumps | Actuators

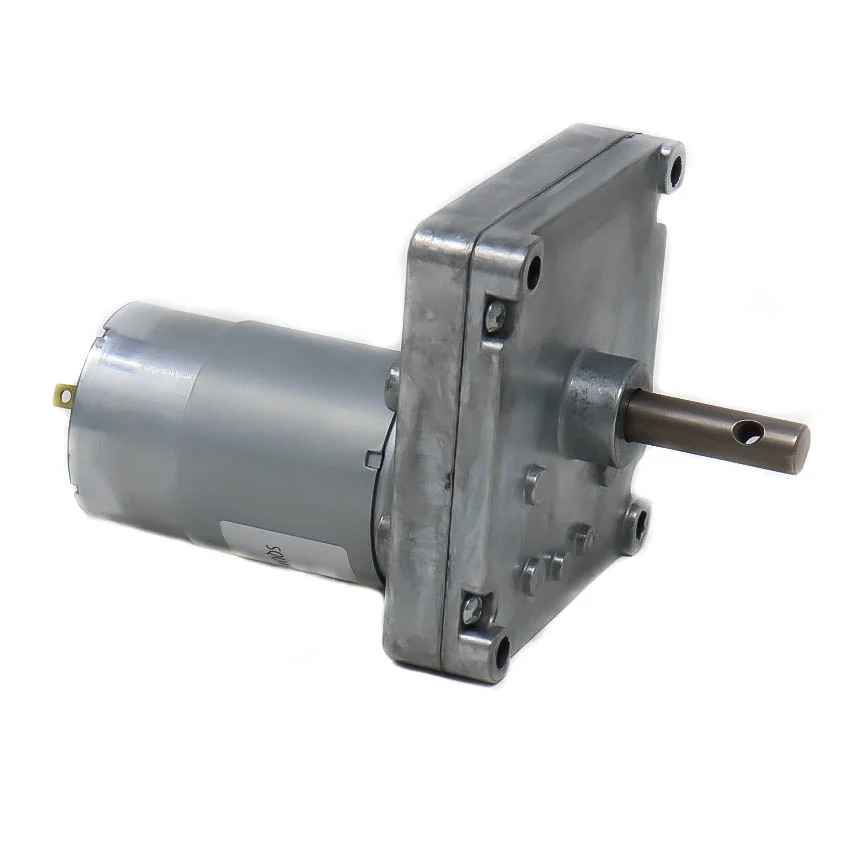

Orange MG555 12V 100RPM Square Gearbox DC motor For DIY Project Encoder Compatible
- Rated current (mA): ≤3600.
- Rated power (W): 7.836.
- Rated Torque (N-cm): 77.4
- Rated speed: 90 RPM.
- Shaft length (mm): 27.
- Shaft diameter (mm): 8.
- Base motor RPM: 6000.
- Back shaft for Encoder Available
- Gear Ratio: 55K.
₹2,079.00 ₹3,079.00
Based on 0 reviews
Be the first to review “Orange MG555 12V 100RPM Square Gearbox DC motor For DIY Project Encoder Compatible”
