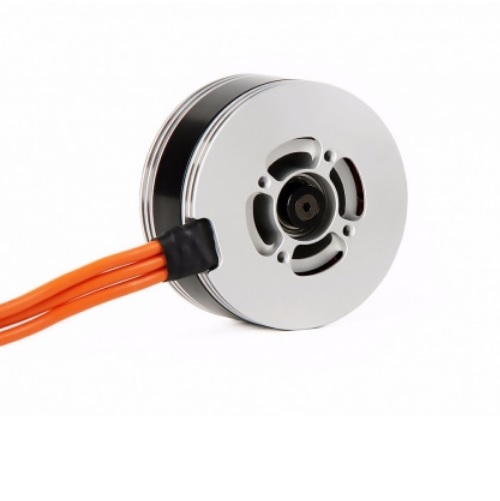

T Motor MN501-S KV360

Name: T Motor MN501-S KV360
SKU: 4948
Price: 12999.00 INR
Availability: InStock

~~₹13,500.00~~ ₹12,999.00

In Stock

Category: Drone Motors

Description

Motor KV (RPM/V):	360
Shaft Diameter (mm):	IN: 6mm, OUT: 4mm
Configuration:	24N28P
Bearing	Imported 696ZZ
Magnet Level	180°C high temperature resistance
Silicon Cable	16AWG x 150MM
Coil Insulation Test	500V
Copper Wire	220°C high temperature resistance: Level C
Motor Standard	<10Mg Dynamic Balance Standard
Rotor Standard	<5Mg Dynamic Balance Standard
Idle Current(A)	1.4A (at 15V)
Peak Current (A)	40A (at 180s )
Max. Power (W)	1000w (at 180s)

Motor KV (RPM/V):	360
Shaft Diameter (mm):	IN: 6mm, OUT: 4mm
Configuration:	24N28P
Bearing	Imported 696ZZ
Magnet Level	180°C high temperature resistance
Silicon Cable	16AWG x 150MM
Coil Insulation Test	500V
Copper Wire	220°C high temperature resistance: Level C
Motor Standard	<10Mg Dynamic Balance Standard
Rotor Standard	<5Mg Dynamic Balance Standard
Idle Current(A)	1.4A (at 15V)
Peak Current (A)	40A (at 180s )
Max. Power (W)	1000w (at 180s)

Weight	500 kg
