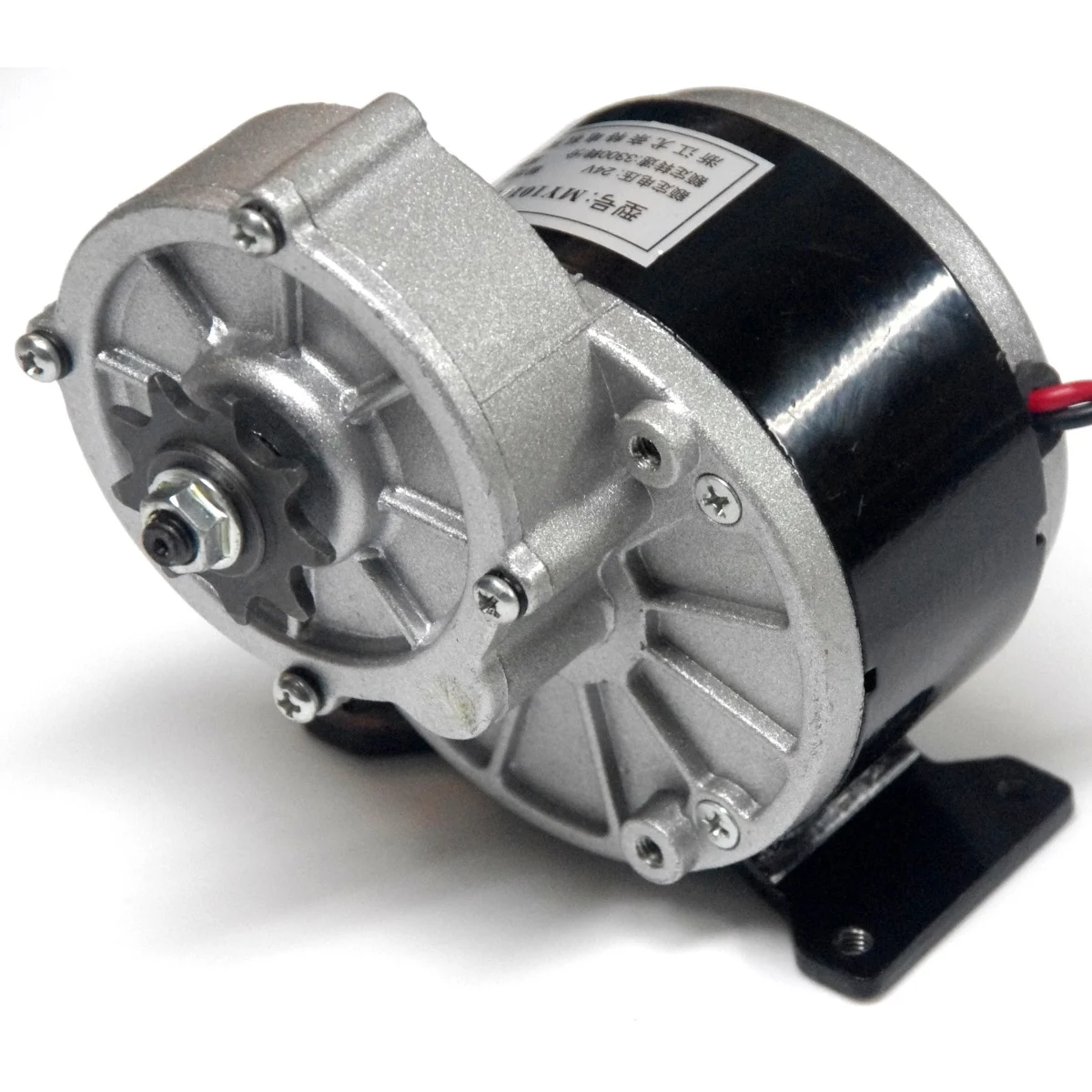

Yalu Ebike MY1016Z2 250W 3300rpm Geared DC motor (GB)
Yalu Ebike MY1016Z2 250W 3300rpm Geared DC motor (GB) - Image 2

Yalu Ebike MY1016Z2 250W 3300rpm Geared DC motor (GB)

₹4,900.00 Original price was: ₹4,900.00.₹3,500.00Current price is: ₹3,500.00.
In Stock
Add to wishlist Compare
Light
light
Category: Tag:
ModelMY1016Z2
Rated Current(A)2.2
Voltage24V
Rated Speed3300 RPM (speed of motor before geared)
360 RPM (after geared output speed)
Operating Power250 Watt.
Gear Ratio9.78:1
Rated Torque (Kg-Cm)8.15
Min. Reduction Ratio9.78
GearboxYes.
Cable Length (Meter)0.5
Weight (Kg)2.35
Shipping Weight2.4 kg
Shipping Dimensions22 × 15 × 12 cm

Description

ModelMY1016Z2
Rated Current(A)2.2
Voltage24V
Rated Speed3300 RPM (speed of motor before geared)
360 RPM (after geared output speed)
Operating Power250 Watt.
Gear Ratio9.78:1
Rated Torque (Kg-Cm)8.15
Min. Reduction Ratio9.78
GearboxYes.
Cable Length (Meter)0.5
Weight (Kg)2.35
Shipping Weight2.4 kg
Shipping Dimensions22 × 15 × 12 cm

Additional information

Weight3000 kg
