Basic Electronic Components
Showing 361–384 of 919 results
-
-
-
Basic Electronic Components

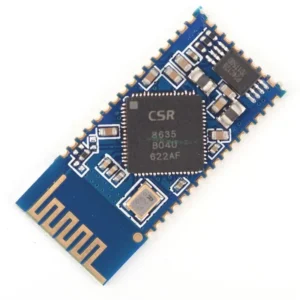

CSR8635 Bluetooth 4.0 Stereo Audio Receive Board Speaker Module
CSR8635 Bluetooth 4.0 Stereo Audio Receive Board Speaker Module
CSR8635 Bluetooth 4.0 is a module that receives stereo audio and sends it to a speaker. It is based on the CSR BC8 chip BC8635, which integrates most of the Bluetooth peripheral components and optimizes the RF and audio performance. The module provides an easy-to-use solution for designing Bluetooth products. It can be used for applications such as Bluetooth speakers, car kits, headsets, etc.
Note:
- Audio output module for differential output, can not be directly connected with an amplifier, the circuit needs into the nondifferential signal, of course, if amplifier support can be directly connected with an amplifier IC.
- The module of the software has two kinds, one kind is the key to boot, suitable for battery-powered occasions; one is electrically powered, adapted to the ordinary power supply occasions to use the kind of software, please note.
- The module requires knowledge of iron welding technology and electronic technique, if does not have this condition, is likely to be a good module to your hand will become a waste, please take caution.
- A voltage of IO the highest resistance to 1.8V module only, more than 1.8V burning module may, please note.
- Bluetooth modules are very sensitive to static and electric leakage, please use the constant temperature soldering iron.
SKU: n/a -
Basic Electronic Components
CYCLONE Nano 2400RX ExpressLRS radio receiver
CYCLONE Nano 2400RX ExpressLRS radio receiver
Introducing the CYCLONE Nano 2400RX ExpressLRS Radio Receiver, an advanced receiver module designed for long-range telemetry transmission in FPV drones and RC aircraft. The Nano 2400RX receiver is equipped with a power amplifier (PA+LNA), providing a telemetry output of 100mW and enhanced sensitivity for extended range communication. It features the IPEX1 antenna base and includes a dipole T-type antenna for optimal signal reception.
Compact and lightweight, the Nano 2400RX module measures just 11x18x3mm and weighs a mere 3 grams. It features an IPEX1 antenna plug and comes with a dipole T-type antenna for immediate use. The module includes four soldering pads for easy integration: GND, VCC, TX, and RX.
SKU: n/a -
Basic Electronic Components
DC – DC 6-24V to 5V USB Output Step Down Power Charger with Adjustable Buck Converter
-58%
Basic Electronic ComponentsDC – DC 6-24V to 5V USB Output Step Down Power Charger with Adjustable Buck Converter
DC – DC 6-24V to 5V USB Output Step Down Power Charger with Adjustable Buck Converter
This USB Output Step Down Power Charger accommodates a 6-24V voltage input and delivers a 5V 3A output, complete with input polarity reverse protection, output overvoltage protection, and short circuit protection.
Utilizing synchronous rectification technology, it achieves an ultra-high power conversion efficiency of up to 97.5%, maximizing the use of the input power. The onboard female type A USB port, equipped with an identification circuit, is ideally suited for iPhones, iPads, and Android smartphones. It is also capable of powering or recharging any electronic device that requires a 5V input power at currents up to 3A.
SKU: n/a -
Basic Electronic Components
DC 12V Relay with Adjustable Delay Time Signal Triggering Switch Module
-59%
Basic Electronic ComponentsDC 12V Relay with Adjustable Delay Time Signal Triggering Switch Module
DC 12V Relay with Adjustable Delay Time Signal Triggering Switch Module
The DC 12V Switch Delay Relay Module features an adjustable delay time of 0 to 25 seconds and is based on the NE555 Timer IC, designed for high-performance timing applications. It includes a power indicator LED and timing indication LEDs for clear visual feedback.
This versatile module is suitable for various applications, including vehicle equipment, where it can delay ignition to prevent high surge currents that may damage components.
Operating as a monostable generator, the NE555 integrated circuit allows for adjustable delay times from 0 to 10 seconds, which can be configured using a potentiometer or by changing the capacitor values. It can control devices up to 220V and 10A.
The NE555 is renowned for its stability in generating accurate time delays and oscillations. It provides terminals for triggering or resetting as needed. In delay mode, timing is precisely managed by an external resistor and capacitor. For stable oscillation, the free-running frequency and duty cycle are controlled by two external resistors and one capacitor. The circuit can be triggered and reset with falling waveforms, and the output can source or sink up to 200mA, making it compatible with TTL circuits.
SKU: n/a -
Basic Electronic Components
Desoldering Wick
Solder wick is composed of copper threads braided together. Flux is normally added to help the solder flow from where it is not supposed to be (the jumper) to the wick. Hence, solder wick is sometimes called desolder braid. Yes, you really can solder anything, and solder wick is a large part of the process.We tried a lot of cheaper solder wick before finding this supplier. This is a cheaper version of the wick we use. We may start using it actually. It works great and the price is awesome.Features:
- Material: 100% Copper
- Useful for Faster and Cleaner electronics Desoldering work
- Thickness: Comfortable for Desoldering
- RMA Coated Wick
- length : 1feet
Package Includes:1 x Desoldering WickSKU: n/a -
Basic Electronic Components, Electronic Components, Wire Wound Inductors
DFE252012F-1R0M=P2 Wire Wound Inductors
-33%
Basic Electronic Components, Electronic Components, Wire Wound InductorsDFE252012F-1R0M=P2 Wire Wound Inductors
DFE252012F-1R0M=P2 Wire Wound Inductors
Features:
Note:
- For more technical details, go through the datasheet in the attachments
- Image may vary from actual product in terms of brand
SKU: n/a -
Basic Electronic Components, Electronic Components, Wire Wound Inductors
DFE252012PD-1R0M P2 Wire Wound Inductors
-33%Basic Electronic Components, Electronic Components, Wire Wound InductorsDFE252012PD-1R0M P2 Wire Wound Inductors
Wirewound Inductor, 1 µH, 0.042 ohm, 3.2 A, DFE252012P_D
Note:
- For more technical details, go through the datasheet in the attachments
- Image may vary from actual product in terms of brand
SKU: n/a -
Basic Electronic Components, Electronic Components, Wire Wound Inductors
DFE252012PD-R47M P2 Wire Wound Inductors
-33%Basic Electronic Components, Electronic Components, Wire Wound InductorsDFE252012PD-R47M P2 Wire Wound Inductors
DFE252012PD-R47M P2 Wire Wound Inductors 470 nH, 0.027 ohm, 4 A, DFE252012P_D
Note:
- For more technical details, go through the datasheet in the attachments
- Image may vary from actual product in terms of brand
SKU: n/a -
Basic Electronic Components
DHT22 Digital Temperature and Humidity Sensor-Standard Quality
DHT22 Digital Temperature and Humidity Sensor-Standard Quality
The DHT22 Digital Temperature and Humidity Sensor (Standard Quality) is an affordable, easy-to-use sensor that measures both temperature and humidity. It utilizes a capacitive humidity sensor and a thermistor to detect environmental conditions, outputting a digital signal on the data pin—no need for analog input.
While the sensor is straightforward to use, it requires careful timing to read the data. One limitation is that you can only retrieve new data every 2 seconds, meaning sensor readings may be up to 2 seconds old when using the provided library.
To use the DHT22, simply connect the leftmost pin to a 3-5V power source, the middle pin to your data input, and the rightmost pin to ground. Although it sends data via a single-wire connection, it is not compatible with Dallas One Wire protocol. If you plan to use multiple sensors, each one must have its own dedicated data pin.
SKU: n/a -
Basic Electronic Components
Digilent Arty A7-100T: Artix-7 FPGA Development Board
Digilent Arty A7-100T is a high-performance Artix-7 FPGA development board designed for versatility and flexibility in FPGA/SoC projects. It comes with Arduino™ headers, multiple Pmod™ ports, and a wide range of connectivity options, making it one of the most adaptable FPGA boards in the Digilent lineup.
The Digilent Arty A7-100T is built around the powerful Xilinx Artix-7 FPGA, delivering excellent performance-per-watt, high-speed transceiver line rates, DSP processing, and AMS integration. With support for the MicroBlaze Soft Processor Core, this board allows developers to create embedded applications with ease, utilizing a variety of peripherals, interfaces, and memory options.
Supported by Xilinx Vivado Design Suite (including the free WebPACK edition), the Digilent Arty A7-100T also integrates seamlessly with the Vitis Core Development Kit and Xilinx Software Development Kit. It offers higher logic capacity with the XC7A100TCSG324-1 device compared to its smaller sibling, the Arty A7-35T, making it ideal for advanced FPGA applications.
SKU: n/a -
Basic Electronic Components
Digilent Arty S7-25: Spartan-7 FPGA Development Board
The Arty family of Digilent FPGA/SoC boards was designed with versatility and flexibility in mind. With universally popular Arduino™ headers and multiple Pmod™ ports, a Xilinx Arty board will be the most adaptable Xilinx dev board in your toolbox.
The Digilent Arty S7 is an affordable, ready-to-use development platform designed around the Xilinx Spartan®-7 FPGA family. With the Spartan-7 devices, the Arty Spartan-7 development board offers best-in-class performance-per-watt, along with small form-factor packaging to meet the most stringent requirements.
Features:
- Internal clock speeds exceeding 450MHz;
- On-chip analog-to-digital converter (XADC).
- Programmable over JTAG and Quad-SPI Flash
-
256 MB DDR3L with a 16-bit bus @ 325 MHz (650 MT/s)
-
128 Mbits Quad-SPI Flash
- 100 MHz External Clock
-
USB-JTAG Programming circuitry (Micro B USB cable required – add one free with your FPGA purchase!).
-
Powered from USB or any 7V-15V source
SKU: n/a -
Basic Electronic Components
Digilent Arty S7-50 : Spartan-7 FPGA Development Board
The Digilent Arty S7-50 is a development board featuring the Xilinx Spartan-7 FPGA, designed for makers, students, and professionals needing a robust platform for digital circuit design and FPGA-based development.
Features:
- FPGA: Built around the Xilinx Spartan-7 (XC7S50) FPGA, providing ample resources for complex designs and entry-level FPGA projects.
- Powerful I/O Capabilities: Equipped with multiple I/O options, including Pmod connectors and Arduino-compatible headers, for easy peripheral expansion.
- On-Board Peripherals: Includes push-buttons, switches, LEDs, and a basic clock source, all designed to assist in prototyping and testing digital designs.
- USB Interface: Provides a USB-JTAG interface for programming and a USB-UART for communication, simplifying data transfer and debugging.
- Memory: Onboard 128MB DDR3 SDRAM, allowing for larger data sets and more complex applications.
- Development Software: Compatible with Xilinx Vivado Design Suite for programming and debugging, with access to a range of IP cores and design tools.
SKU: n/a -
Basic Electronic Components
Digilent Basys 3 Artix-7 FPGA Trainer Board Recommended for Introductory Users
-64%
Basic Electronic ComponentsDigilent Basys 3 Artix-7 FPGA Trainer Board Recommended for Introductory Users
Features:
- Features the Xilinx Artix-7 FPGA: XC7A35T-1CPG236C
- 33,280 logic cells in 5200 slices (each slice contains four 6-input LUTs and 8 flip-flops)
- 1,800 Kbits of fast block RAM
- Five clock management tiles, each with a phase-locked loop (PLL)
- 90 DSP slices
- Internal clock speeds exceeding 450 MHz
- On-chip analog-to-digital converter (XADC)
- Digilent USB-JTAG port for FPGA programming and communication
- Serial Flash
- USB-UART Bridge
- 12-bit VGA output
- USB HID Host for mice, keyboards, and memory sticks
- 16 user switches
- 16 user LEDs
- 5 user pushbuttons
- 4-digit 7-segment display
- 4 Pmod ports: 3 Standard 12-pin Pmod ports, 1 dual-purpose XADC signal / standard Pmod port
SKU: n/a -
Basic Electronic Components
Digilent Cmod A7-35T: Breadboardable Artix-7 FPGA Module
Get Digilent Cmod A7-35T: Breadboardable Artix-7 FPGA Module. The Cmod, or Carrier Module, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects.
The Digilent Artix-7 FPGA Module is a small, 48-pin DIP form factor board built around a Xilinx® Artix®-7 FPGA that brings FPGA power and prototyping to a solderless breadboard.
The Digilent Cmod A7 board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod A7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 44 FPGA I/O signals that are routed to 100-mil-spaced through-hole pins, making the Cmod A7 compatible with solderless breadboards. This form factor makes the Cmod A7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7″ by 2.75″, it can also be loaded in a standard socket and used in embedded systems.
The Artix®-7 FPGA on the Cmod A7 provides the highest performance-per-watt fabric, transceiver line rates, DSP processing, and AMS integration for a cost-optimized FPGA. Digilent Cmod A7, with the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.
If your design does not require the transceiver lines or higher performance of the Artix®-7 FPGA, we recommend the more affordable Cmod S7, featuring a Spartan®-7 FPGA.
SKU: n/a -
Basic Electronic Components
Digilent Cmod S7: Breadboardable Spartan-7 FPGA Module
This is Digilent Cmod S7: Breadboardable Spartan-7 FPGA Module.
The Cmod, or Carrier Module, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects.
The Digilent Cmod S7 is a small, 48-pin DIP form factor board, populated with 36 pins, built around a Xilinx® Spartan®-7 FPGA that brings FPGA power and prototyping to a solderless breadboard.
The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod S7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 32 FPGA I/O signals, 2 FPGA analog input signals, an external power input rail, and ground that are routed to 100-mil-spaced through-hole pins, making the Cmod S7 compatible with solderless breadboards. This form factor makes the Cmod S7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7″ by 3.05″, it can also be loaded in a standard socket and used in embedded systems.
The Spartan-7 FPGA on the Cmod S7 fits performance into a small form-factor packaging. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.
If your design requires transceiver lines or more FPGA resources, we recommend the higher-performance Cmod A7, featuring an Artix-7 FPGA.
SKU: n/a -
Basic Electronic Components
Digilent Cora Z7: Zynq-7000 Single Core for ARM/FPGA SoC Development Board
-61%
Basic Electronic ComponentsDigilent Cora Z7: Zynq-7000 Single Core for ARM/FPGA SoC Development Board
This is Digilent Cora Z7: Zynq-7000 Single Core for ARM/FPGA SoC Development Board.
The Cora Z7 is our most cost-optimized SoC development board featuring the power and flexibility of Xilinx’s Zynq®-7000 SoC family.
Featuring Arduino™ headers, 1Gbps Ethernet, an onboard analog-to-digital converter, and Pmod ports, the Cora Z7 can be used in a variety of embedded applications. The Zynq-7000(S) SoC family integrates the software programmability of an ARM®-based processor with the hardware programmability of an FPGA, delivering cost-optimized system integration. At such a friendly price point, the Cora Z7 is a great development board to get started with Zynq-based designs.
The Cora Z7 is supported by Xilinx’s Vivado ML, including the free Vivado ML Standard Edition. You can also interact with the processing system (PS) with Xilinx’s Vitis Unified Software Platform and PetaLinux Tools.
The ARM Cortex™-A9 processor on the Cora Z7-07S is single-core.
SKU: n/a
